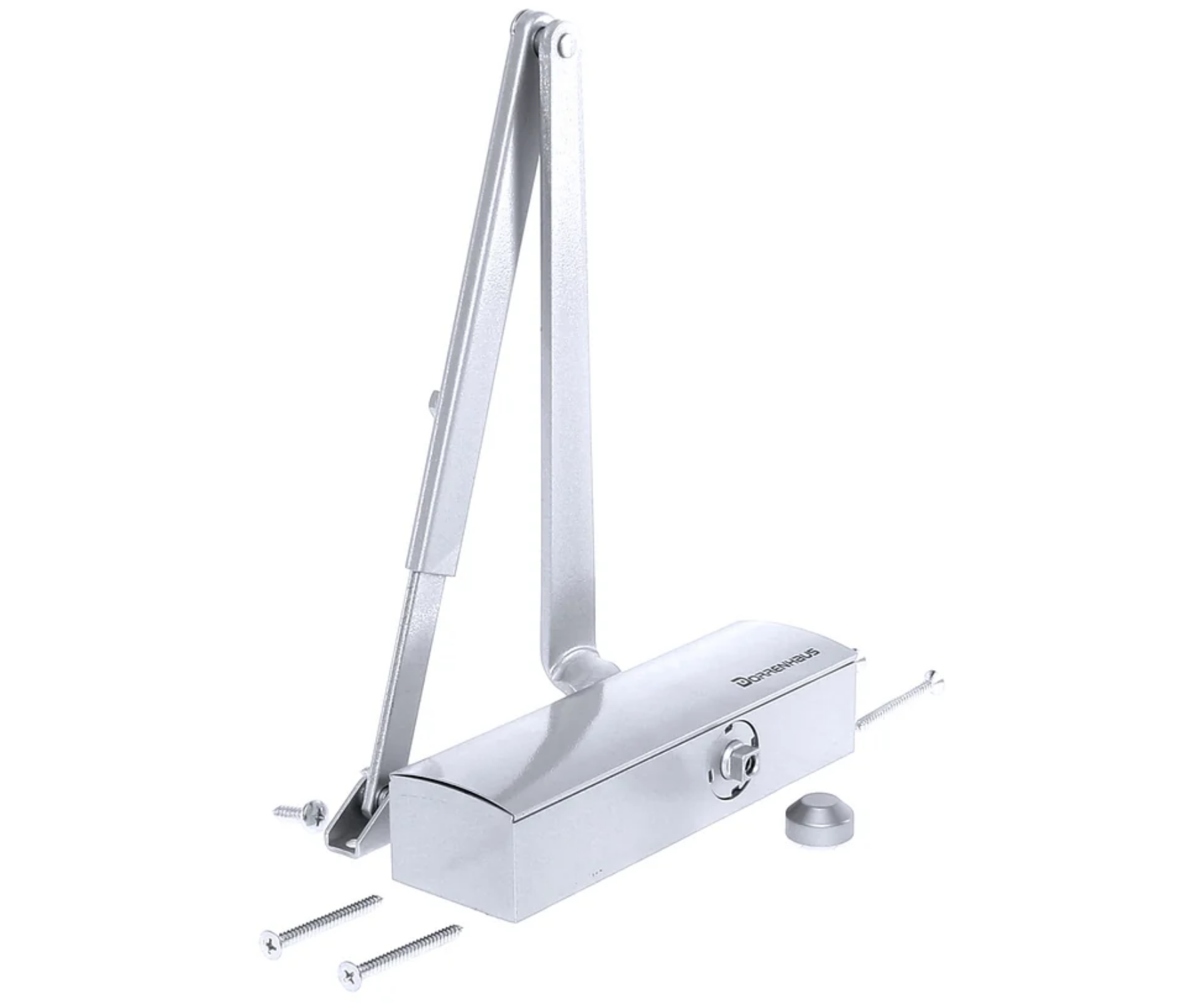

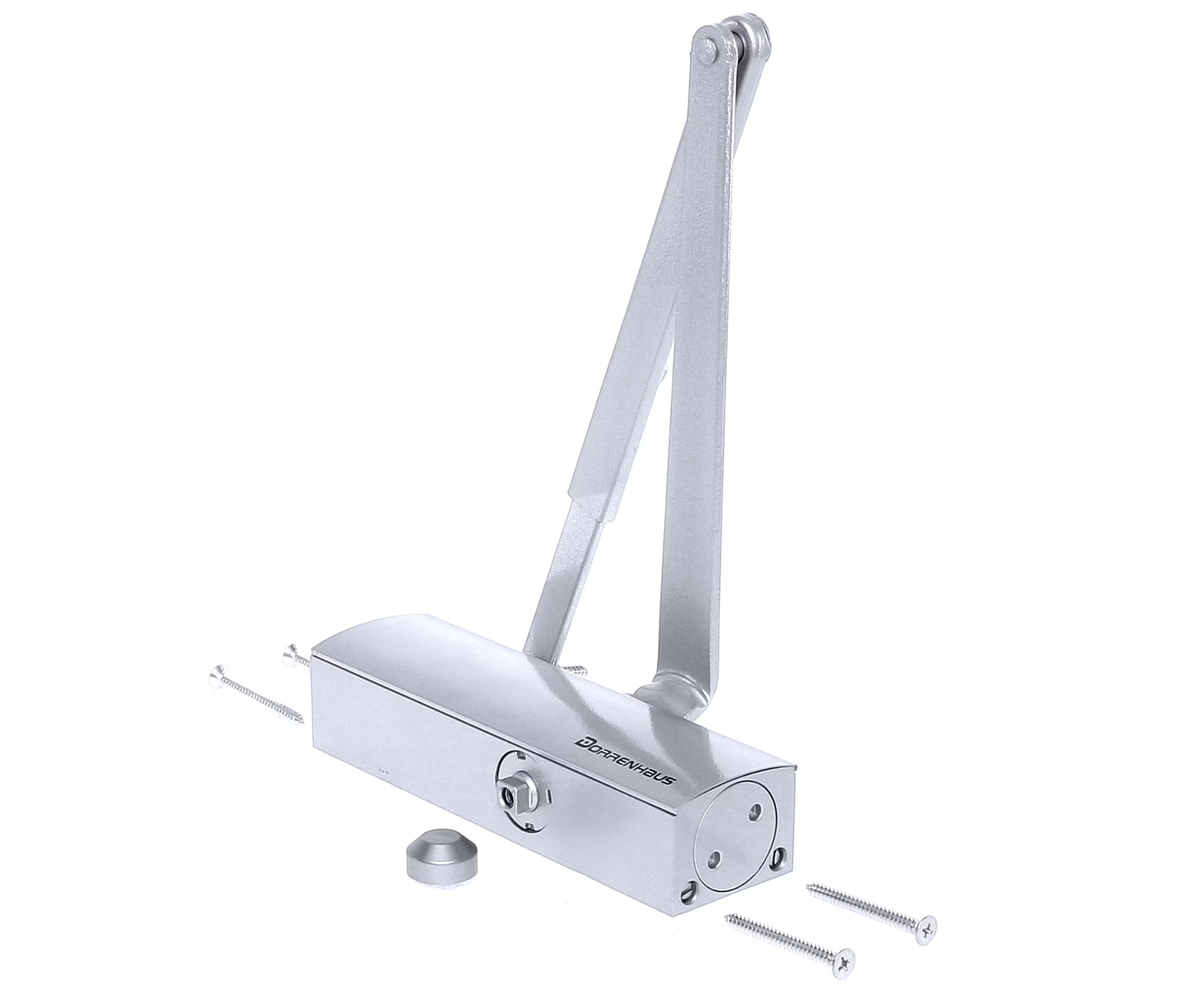

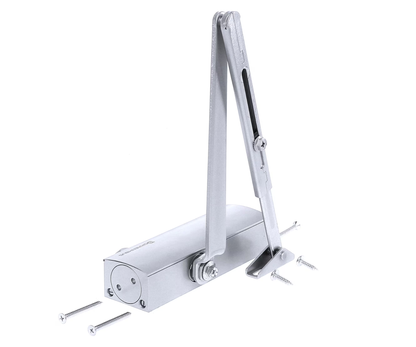

D-903 Dorrenhaus door closer (20-60KG)

Name: D-903 Dorrenhaus door closer (20-60KG)
Brand: Dorrenhaus
SKU: D-903
Price: 60.50 EUR
Availability: InStock

€60,50

Click here for selection help

Taxes included. (€33,99)Shipping calculated at checkout.

In stock(54)
Door installation
Frame installation
20-60 KG
Scissor arm

Delivered the next day

Choose pickup location yourself

Completely supplied

Reachable by phone 030-2072029

Two independently adjustable closing speeds
For left- and right-turning doors
small and powerful model

For doors up to 1000mm wide
Closing force 20-60 KG
Complies with NEN 1154 standard for fire-resistant doors
Suitable for frame and door leaf installation

Quantity

Payment Options

View full details

Advantages and disadvantages

D-903 Dorrenhaus door closer (20-60KG)

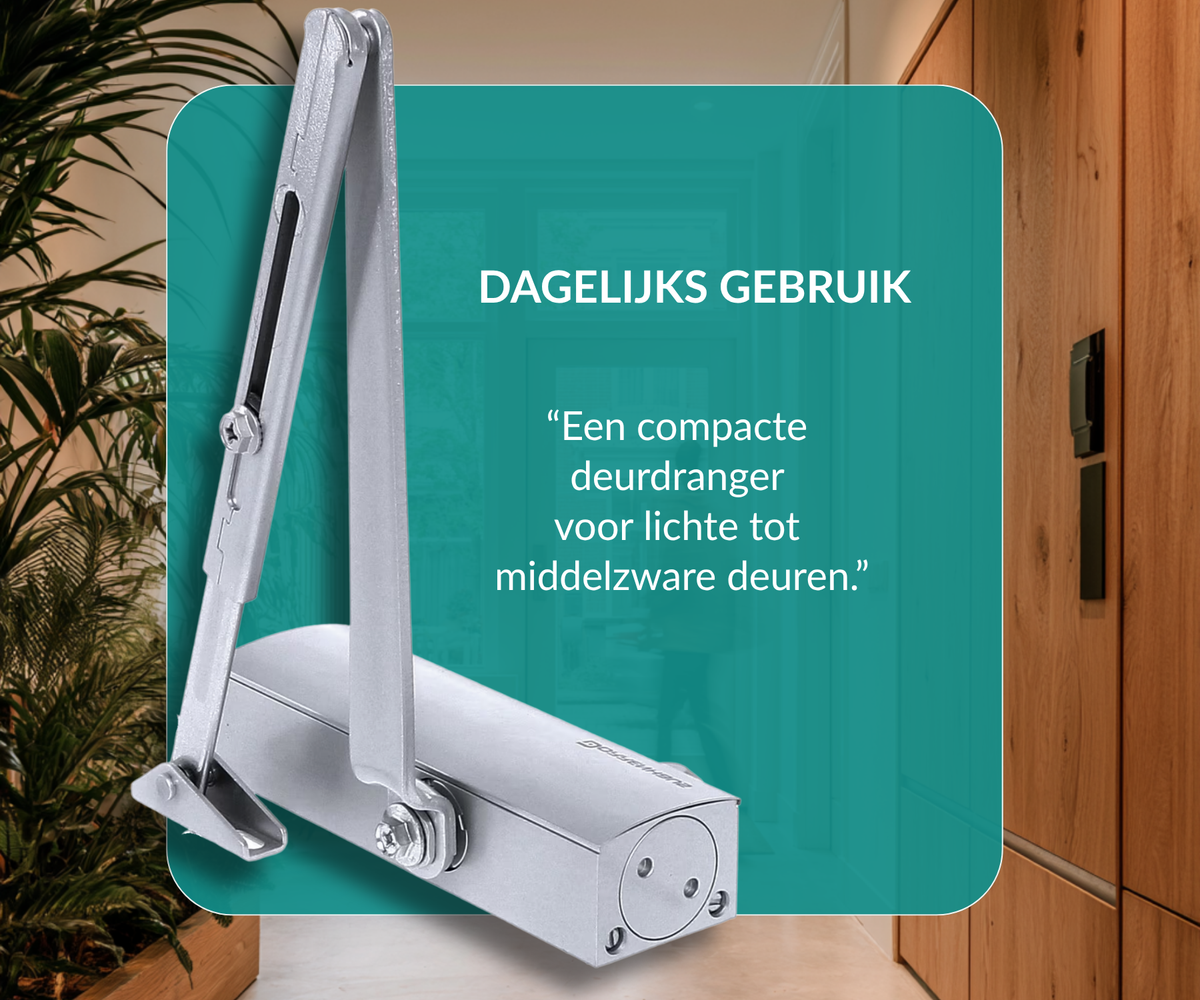

This compact Türschließer is suitable for light to medium-heavy doors weighing 20-60 kg. This makes it ideal for the majority of residential applications.
Equipped with a cover cap on the visible side over the adjustment screws, providing a neat, professional appearance. Because the adjustment points are on the front, this Türschließer is very user-friendly.

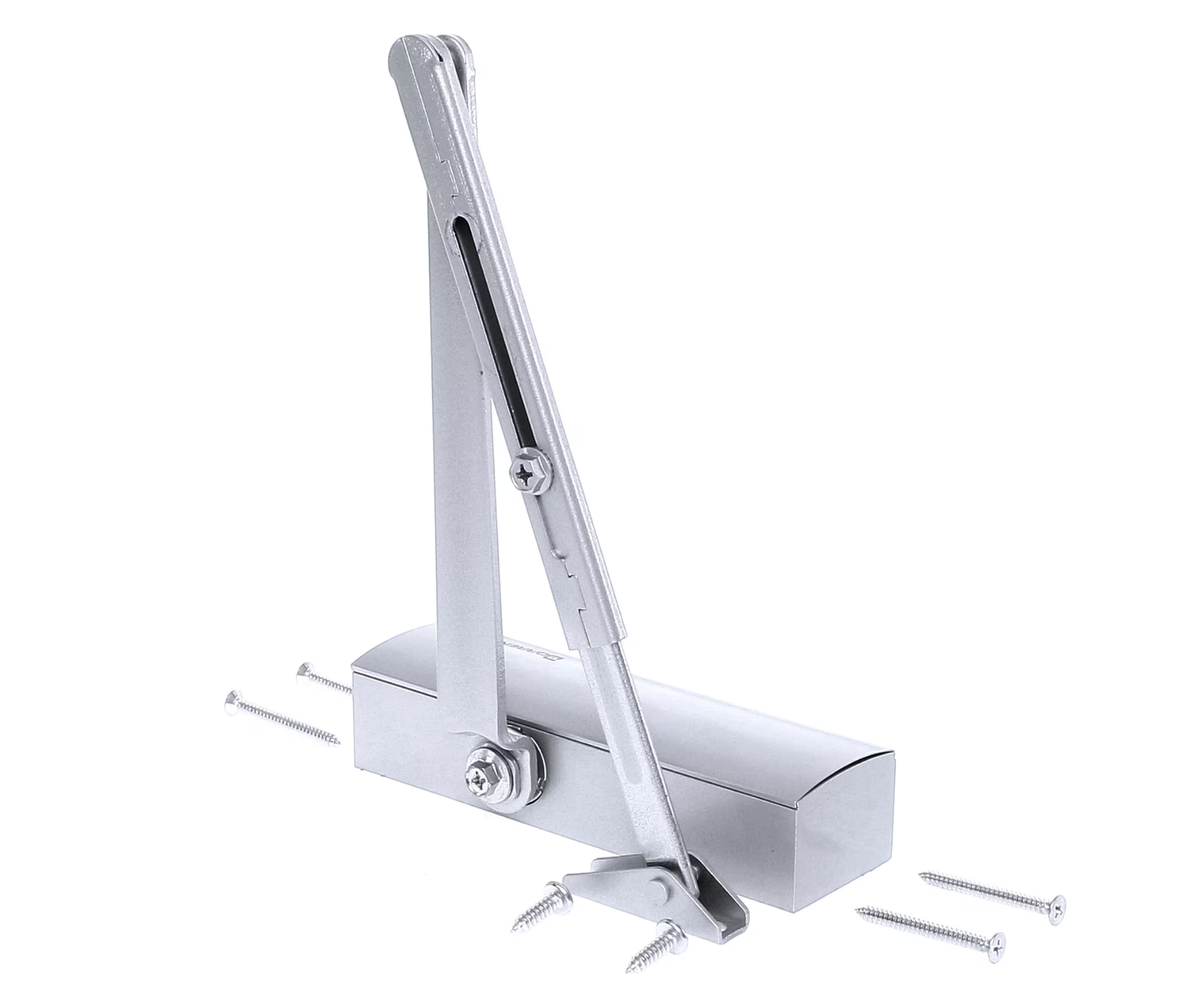

The arm is length-adjustable via a sliding mechanism, which makes installation simpler and faster.

This compact version has less power than heavier models such as the D2025 or the D3036. As a result, it works optimally with doors up to 1000 mm wide; with wider doors, the closing force decreases.

Description

This compact, durable door closer is ideal for professional use in homes, apartment buildings, and light commercial projects. Reliable performance, easy to install, and designed for long-lasting use.

Installation options

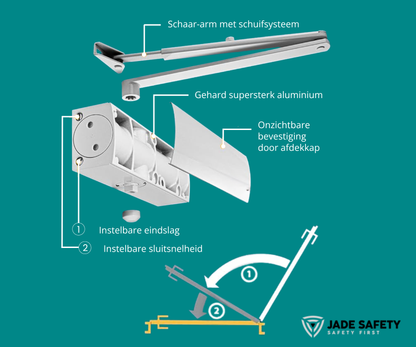

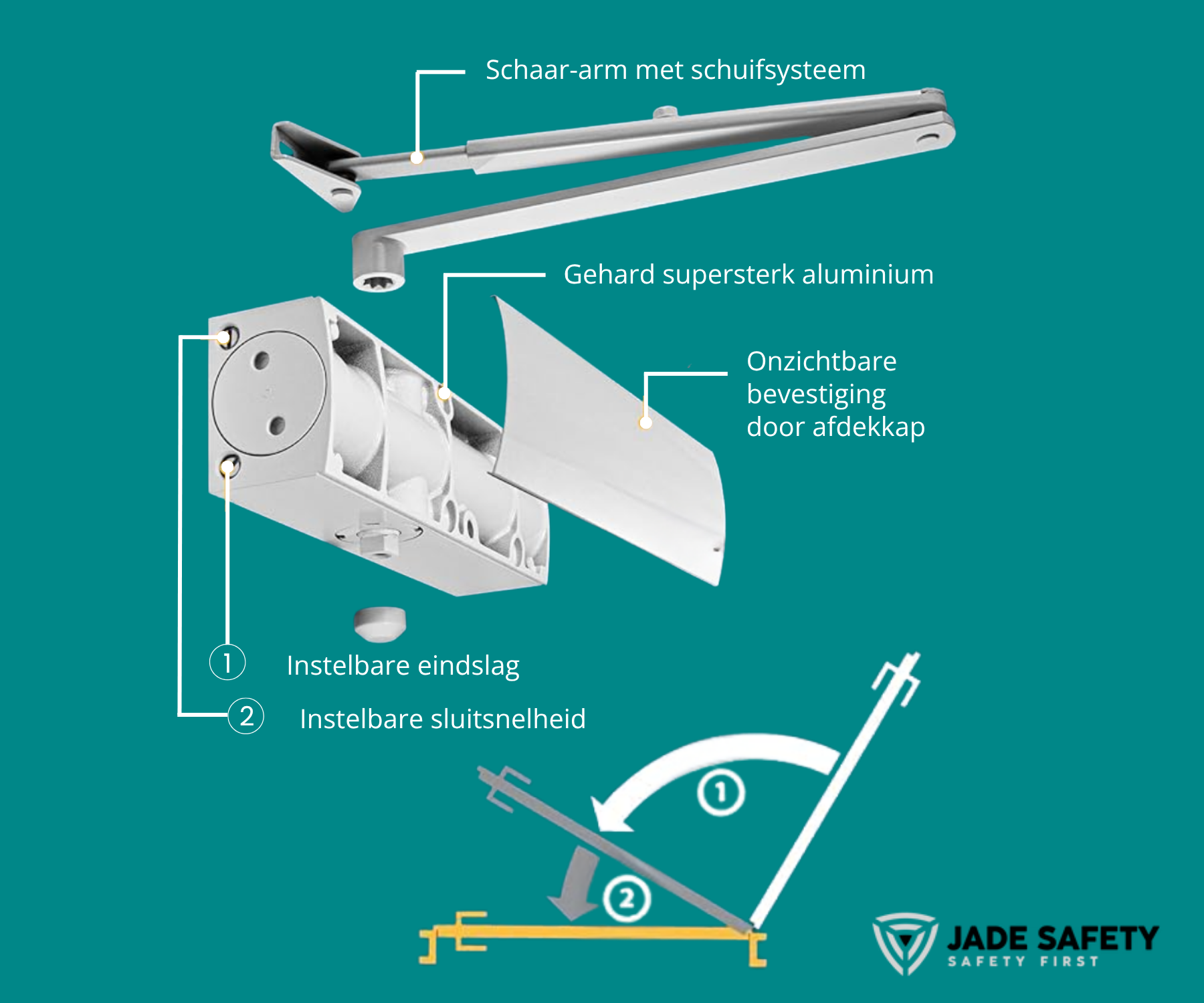

This door closer features an adjustable closing speed and final stroke.
This means you can set the first 150 degrees of the closing movement as you wish and adjust the last 30 degrees (final stroke) separately.
For example, you can choose a fast closing with a slow final stroke, or vice versa.

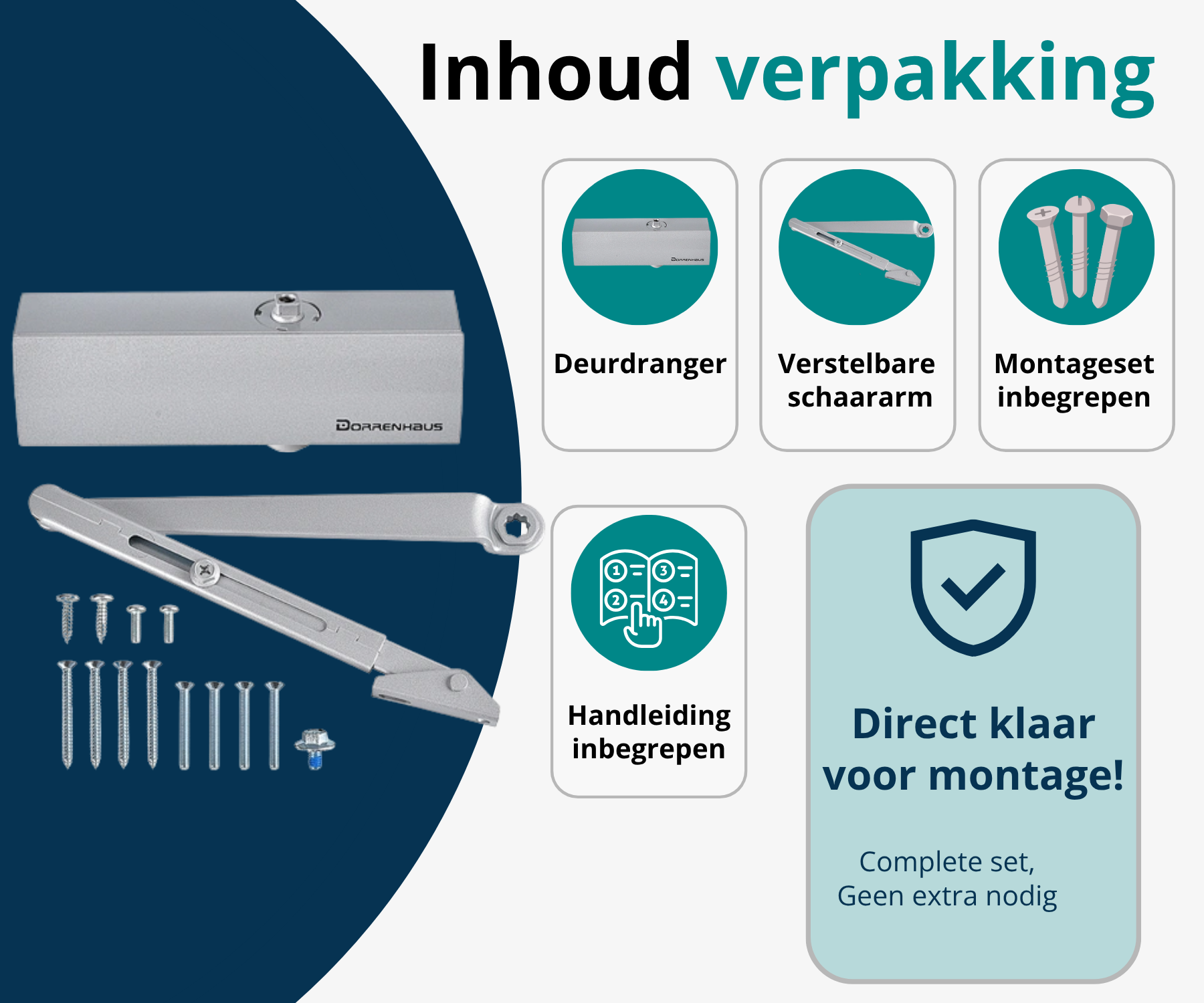

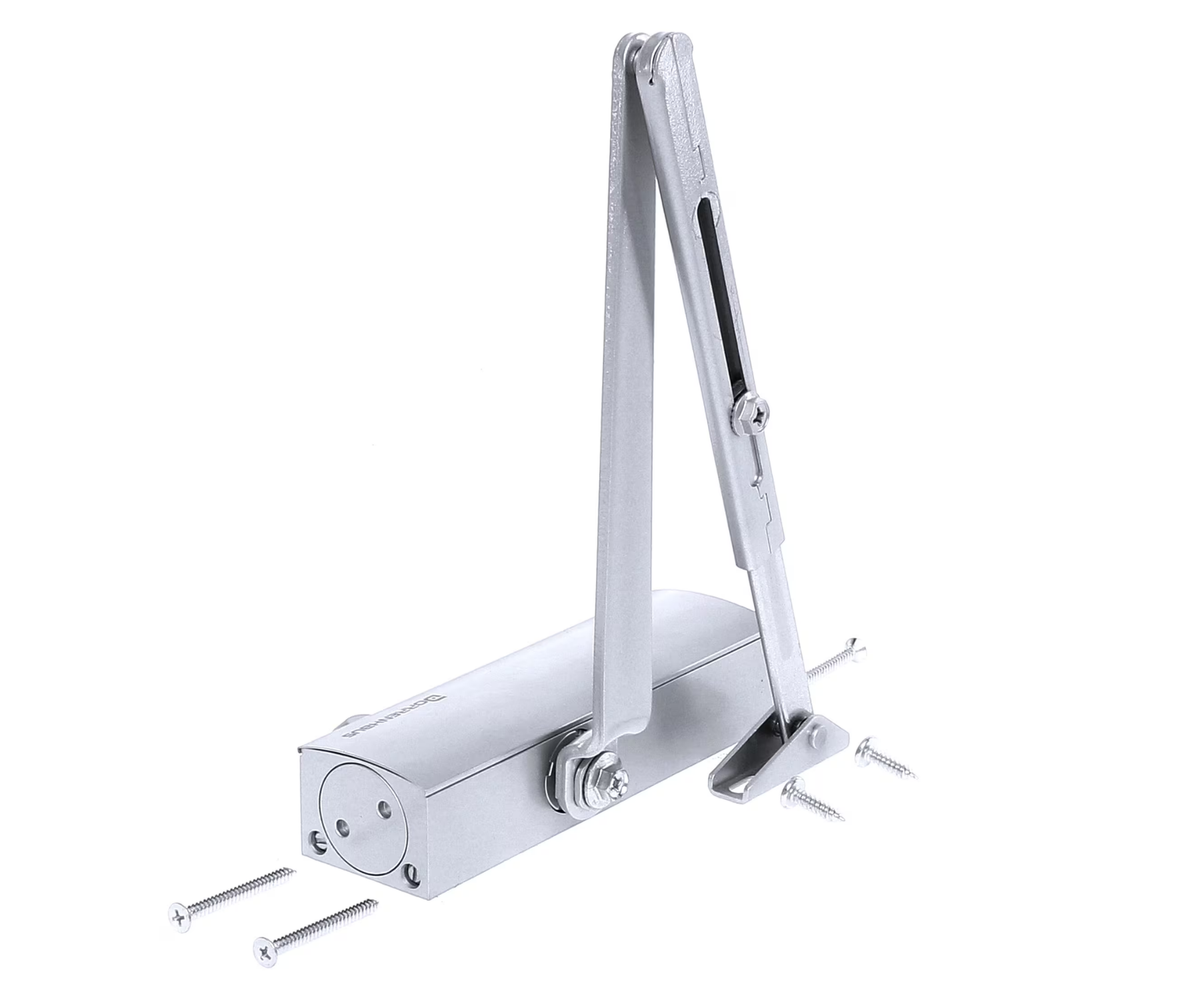

In the box

Door closer
Scissor arm with slide adjustment
Screws and mounting material
Manual
Protective cap for the shaft
Front cover cap

Technical specifications

Specification Details	Details
Version	Articulated arm / scissor arm
Color	Silver-colored
Closing force	EN2, EN 3, EN 4
Swing direction	Left and right swinging
Brand	Dorrenhaus
Variable start and end speed	Yes
Adjustable closing speeds	Yes
Safety valve against damage	yes
Door width	Up to 1000 mm
Weight of your door	20-80 KG
Door leaf mounting	On hinge side or pull side
Frame mounting	On non-hinge side or push side
Application	Semi professional
Hold-open function	no
Maximum adjustable opening angle	no

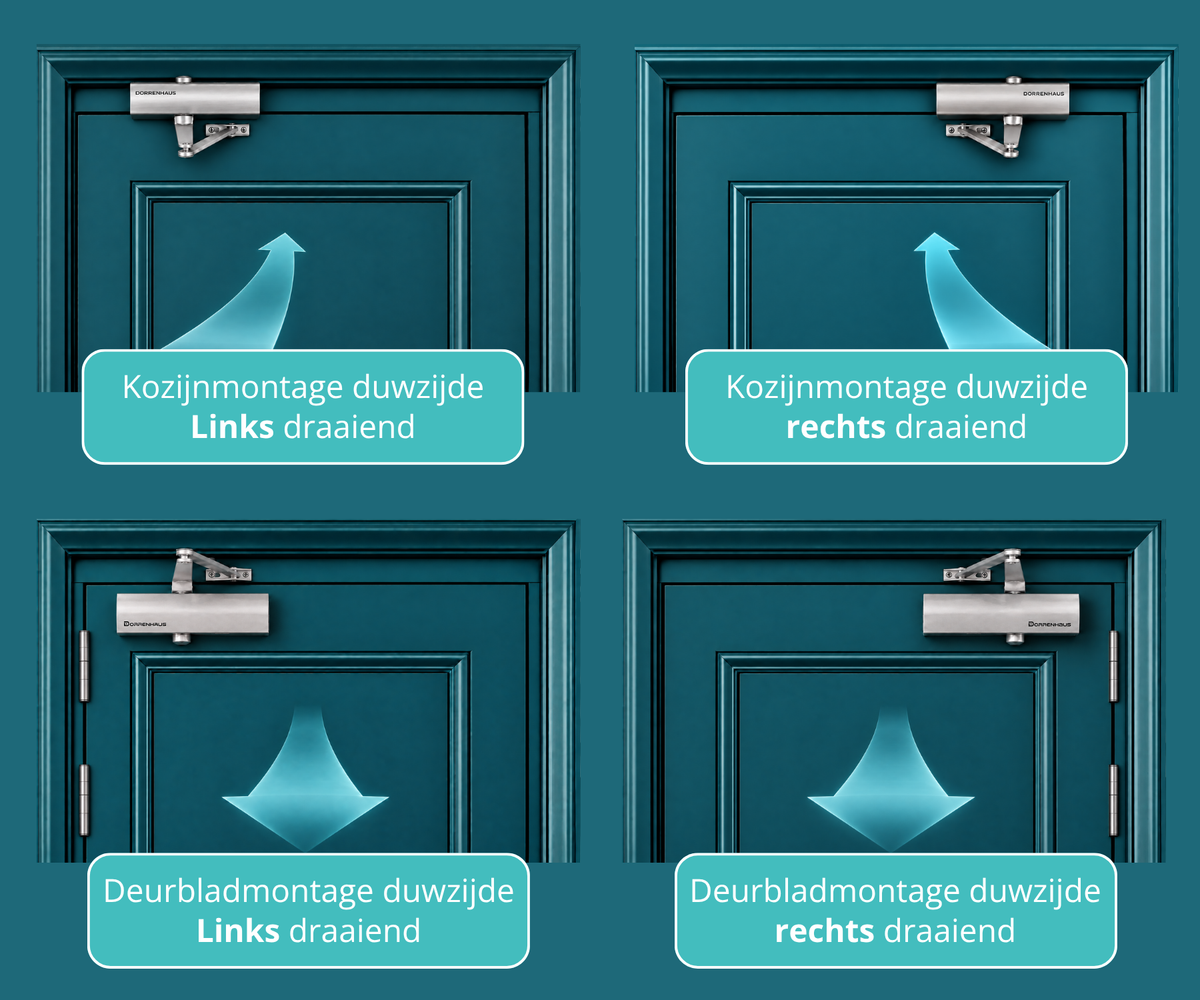

Frame installation

Door closer on the frame, arm on the door, you push the door away from you when opening.

Push and Pull side

This door closer can be used for both the push side and the pull side

Door leaf installation

The door closer on the door, arm on the frame, you pull the door towards you when opening.

Assembly

This door closer is suitable for left- and right-opening doors.

Videos

See below available videos about this product.

Manuals

For more information about the installation, download the manual below.

D903 Installation Instructions D-903-installation-guide

Installation advice

Tip: Fully open the door and tighten both adjustment screws of the Türschließer.
If done correctly, the door will stay open and will not close.
Then slowly turn the correct adjustment screw a little to open, so the door closes gently.
Then slowly turn the correct adjustment screw a little to open, so the door closes gently.
If the door still does not close completely, slowly turn the other adjustment screw to regulate the speed at which the door latches.
This way you can adjust the full closing speed to your liking.

★ ★ ★ ★ ★
