GEZE Free-running door closer TS 5000-EFS (155477) door leaf mounting

GEZE Free-swing Door Closer TS 5000-EFS (155477) door leaf mounting

The GEZE TS5000 EFS (155477) is a high-quality free-swing door closer for fire- and smoke-resistant doors. During daily use, the door opens and closes without noticeable resistance, ideal for situations where accessibility is important. In case of fire, the closer automatically activates and closes the door safely and controlled. Mounted on the door leaf, on the hinge side. Perfect for healthcare, apartments, schools, and utility buildings.

What is a free-swing door closer?

A free-swing door closer is a door closer that only activates upon fire alarm or smoke detection. During normal use, the door feels as light as a door without a closer: you can open and close the door without noticeable resistance.
Only when the connected smoke detector or fire alarm system sends a signal, the closer switches to normal closing force, causing the door to close automatically and controlled.

Why is this door closer so unique? (TS5000 EFS – 155477)

The GEZE TS5000 EFS is a so-called EFS version: Electric Free Swing. The special feature of this model is that the free-swing mechanism is electrically controlled, extremely reliable, and suitable for situations where doors are normally hard to open — for example, heavy interior doors or entrance doors in healthcare facilities.

Important unique features:

Free-swing function: door feels completely free during daily use.
Automatic closing in case of fire thanks to electric free-swing module.
Suitable for fire- and smoke-resistant doors.
Very low opening resistance — ideal for elderly, children, and people with disabilities.
Consistent quality and closing force (EN 1154 / EN 1155).
GEZE-specific precision and durability — market leader in free-swing technology.

What is the TS5000 EFS used for?

This door closer is mainly used in places where doors:

under normal conditions must be as easy to open as possible;
must close automatically in case of fire;
comply with rules for escape routes, smoke compartments, and fire protection.

Think of:

healthcare institutions and hospitals
apartment complexes
schools and daycare centers
offices and utility buildings
corridors, stairwells, and fire separations

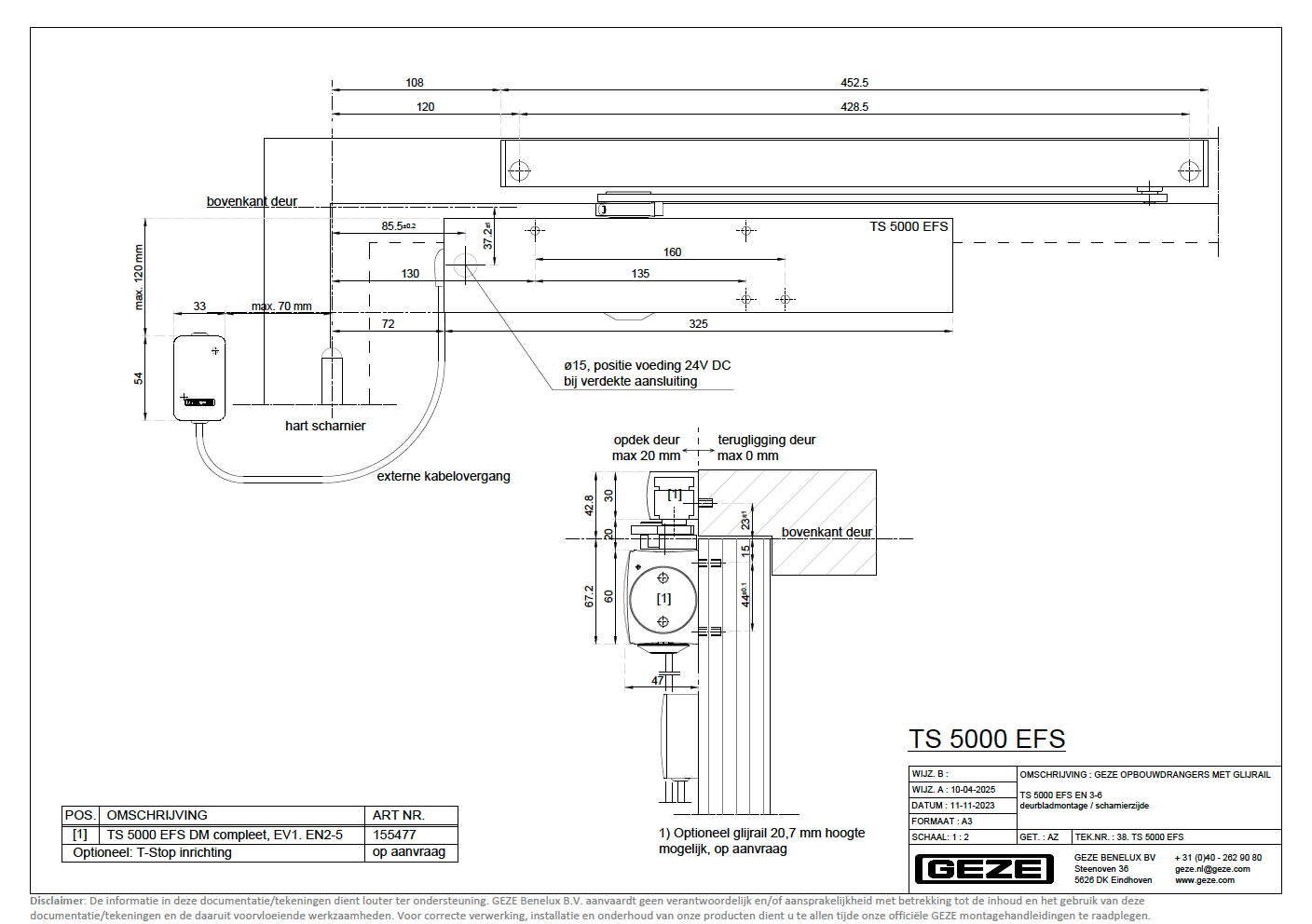

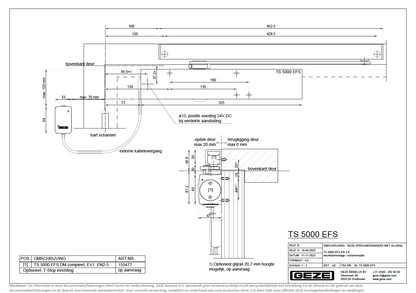

Mounting of this version (art.no. 155477)

For this article number applies:

Mounting on the door leaf
On the hinge side
Complete with EFS free-swing arm
Suitable for single-leaf doors

This combination ensures that the free-swing function works optimally and meets the requirements for fire- and smoke-resistant doors.

Mounting
This door closer is suitable for both left- and right-opening doors.

Door leaf mounting: door closer on the door, arm on the frame; the door opens towards you.

In the box
Door closer
Sliding arm free-swing EFS
External cable transition for 24Vdc power supply
Screws and mounting materials
Manual
mounting template
Protective cap for the shaft
Front cover
Allen key
