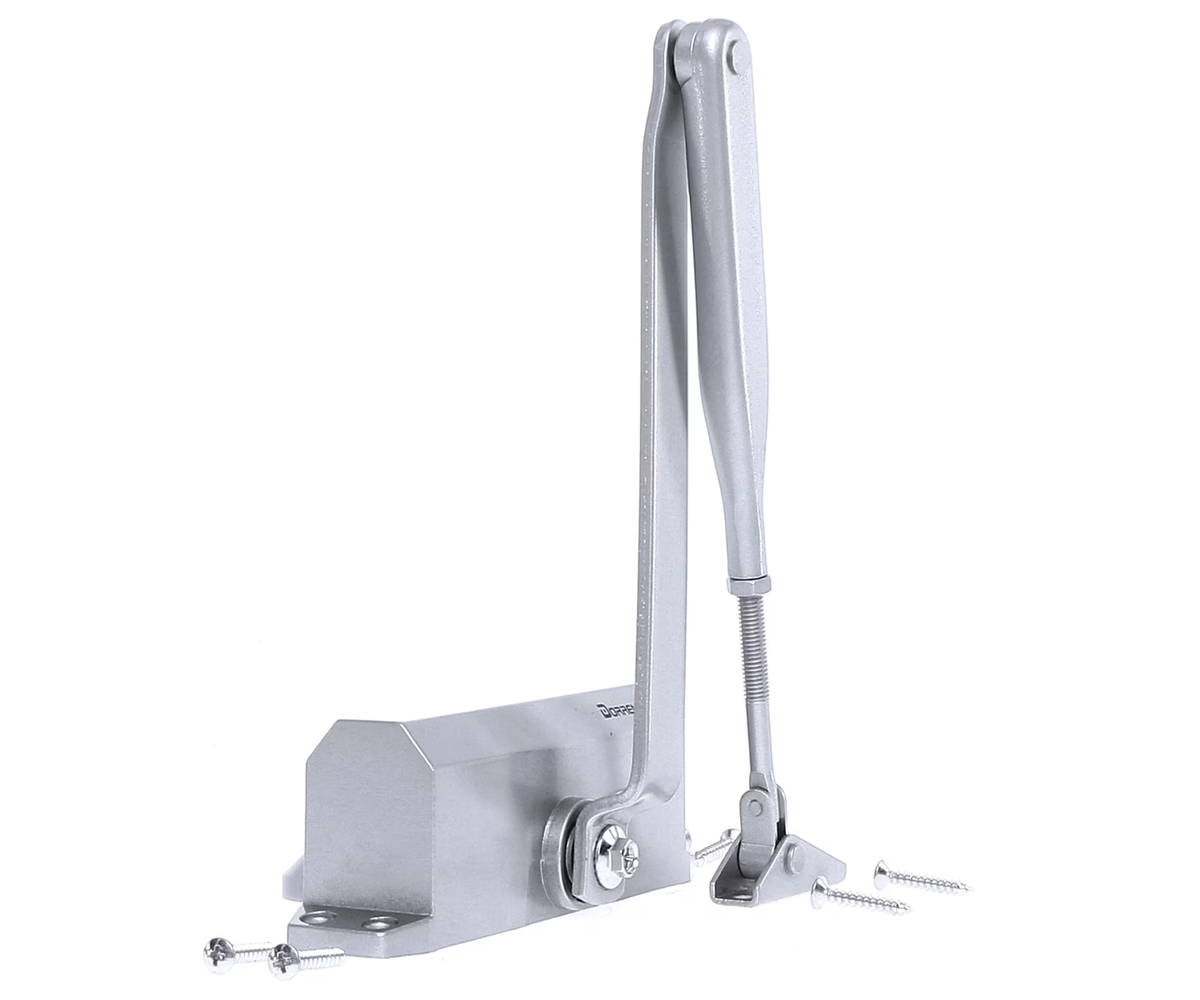

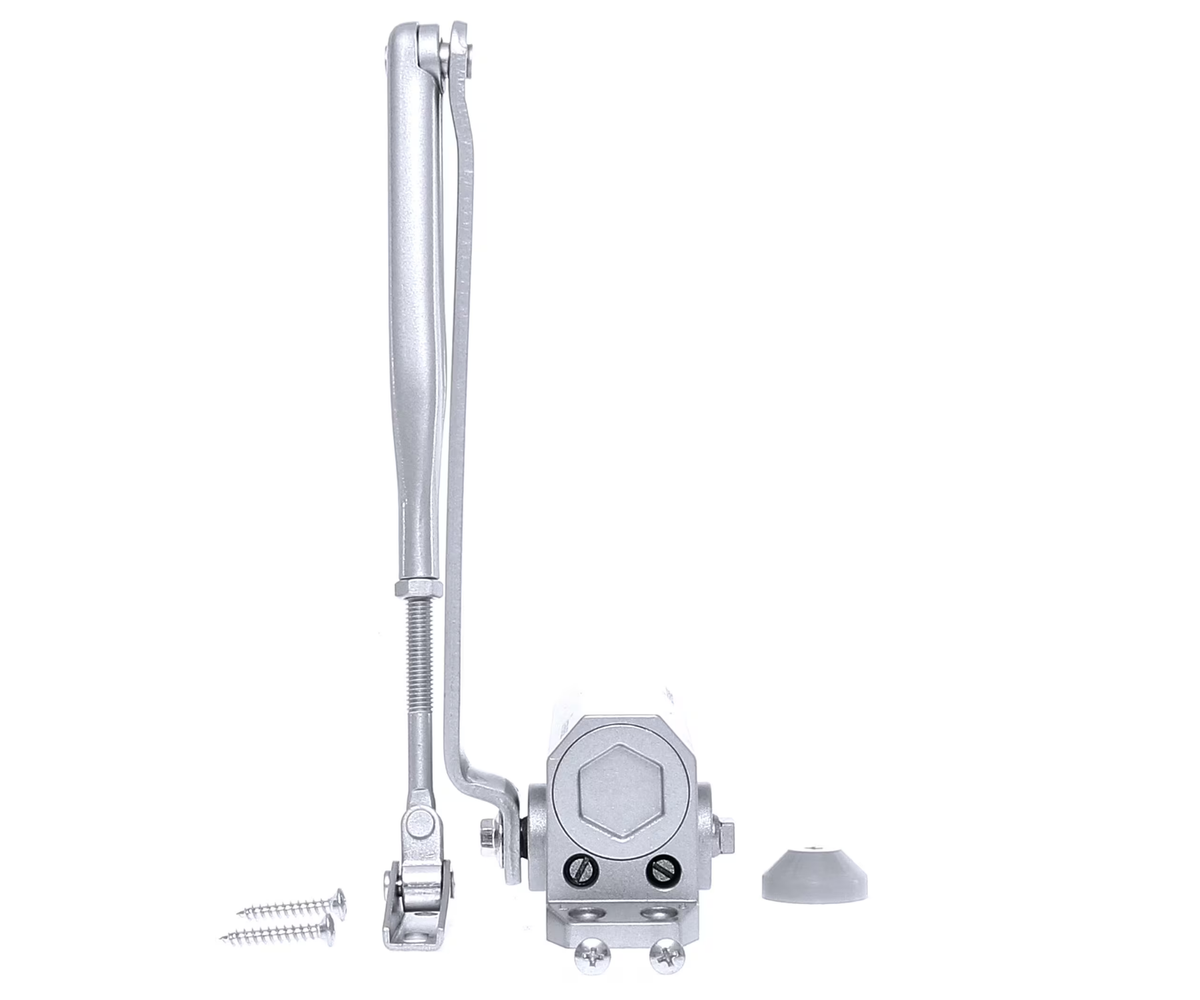

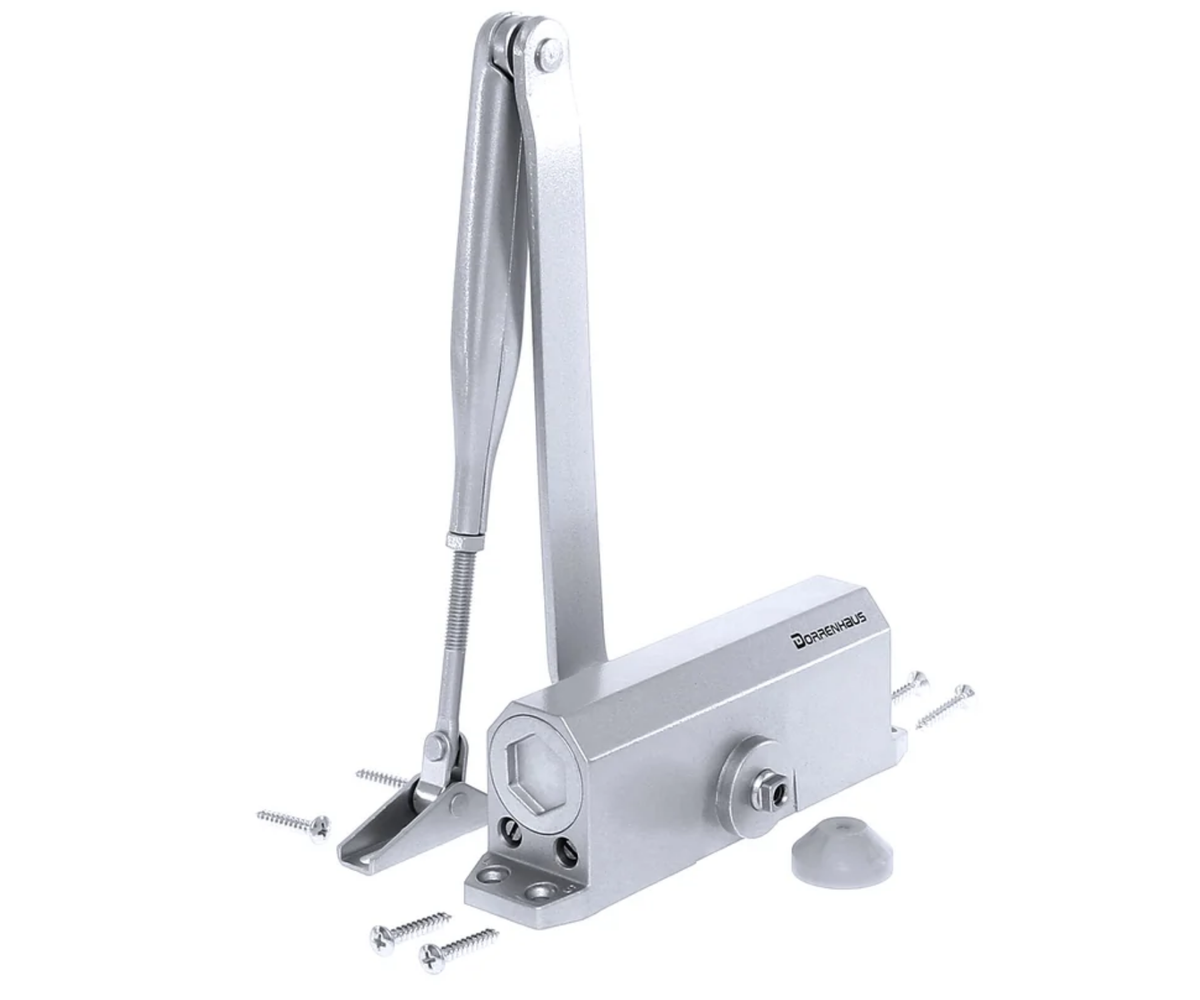

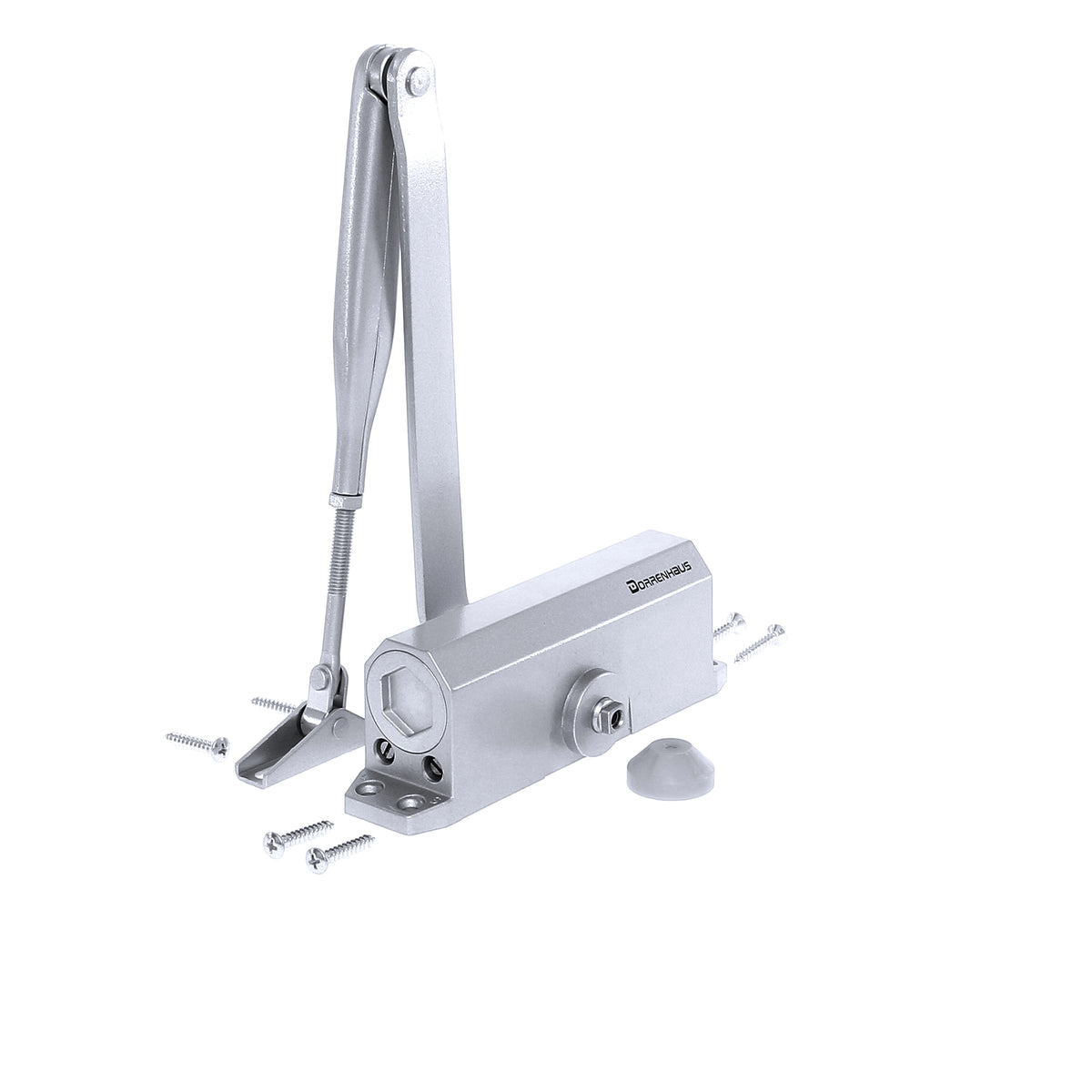

D-503 door closer Dorrenhaus (20-60KG)

Name: D-503 door closer Dorrenhaus (20-60KG)
Brand: Dorrenhaus
SKU: D-503
Price: 60.44 EUR
Availability: InStock

€60,44

Click here for selection help

Taxes included. (€33,99)Shipping calculated at checkout.

In stock(190)
Door installation
Frame installation
20-60 KG
Scissor arm

Delivered the next day

Choose pickup location yourself

Completely supplied

Reachable by phone 030-2072029

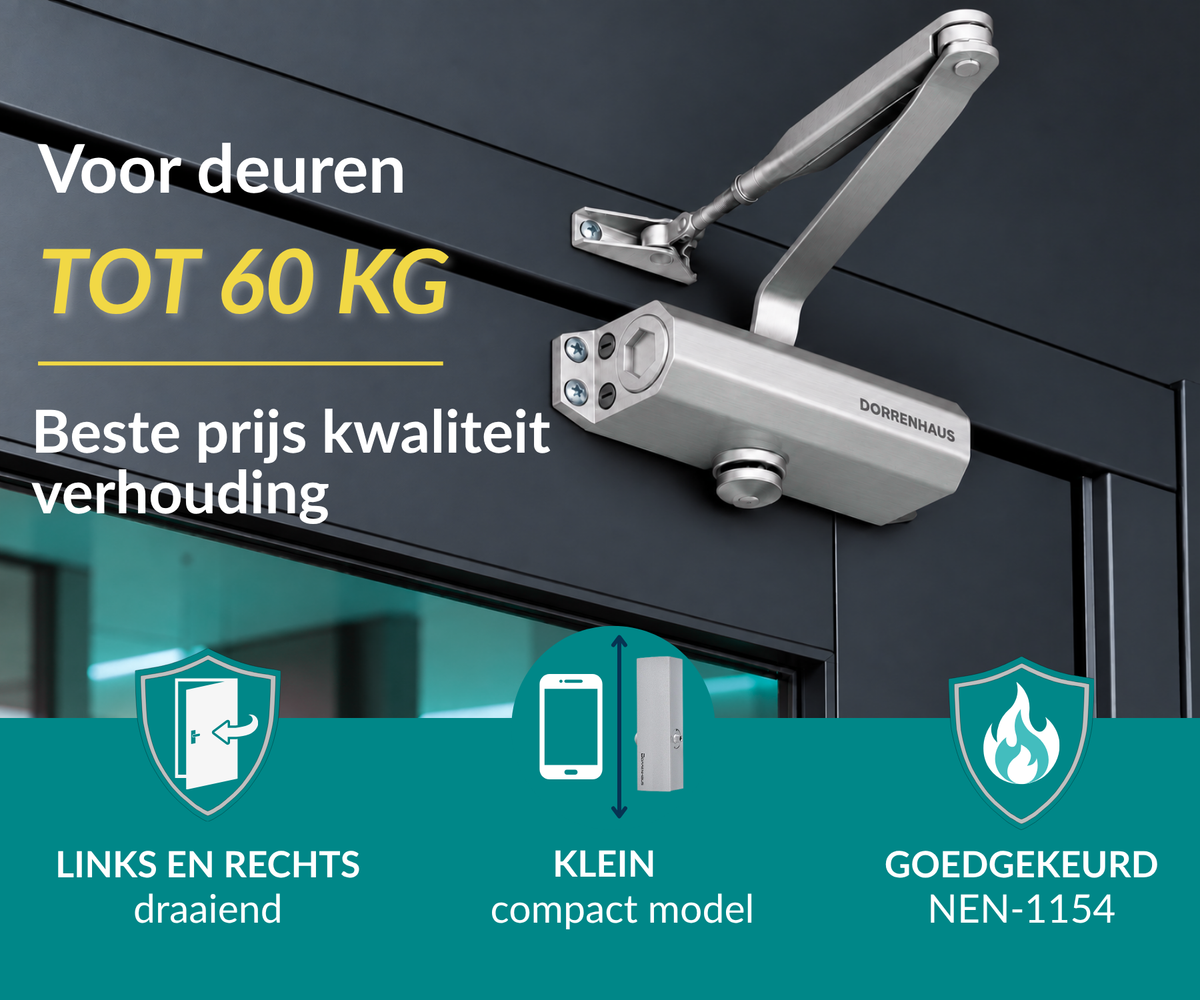

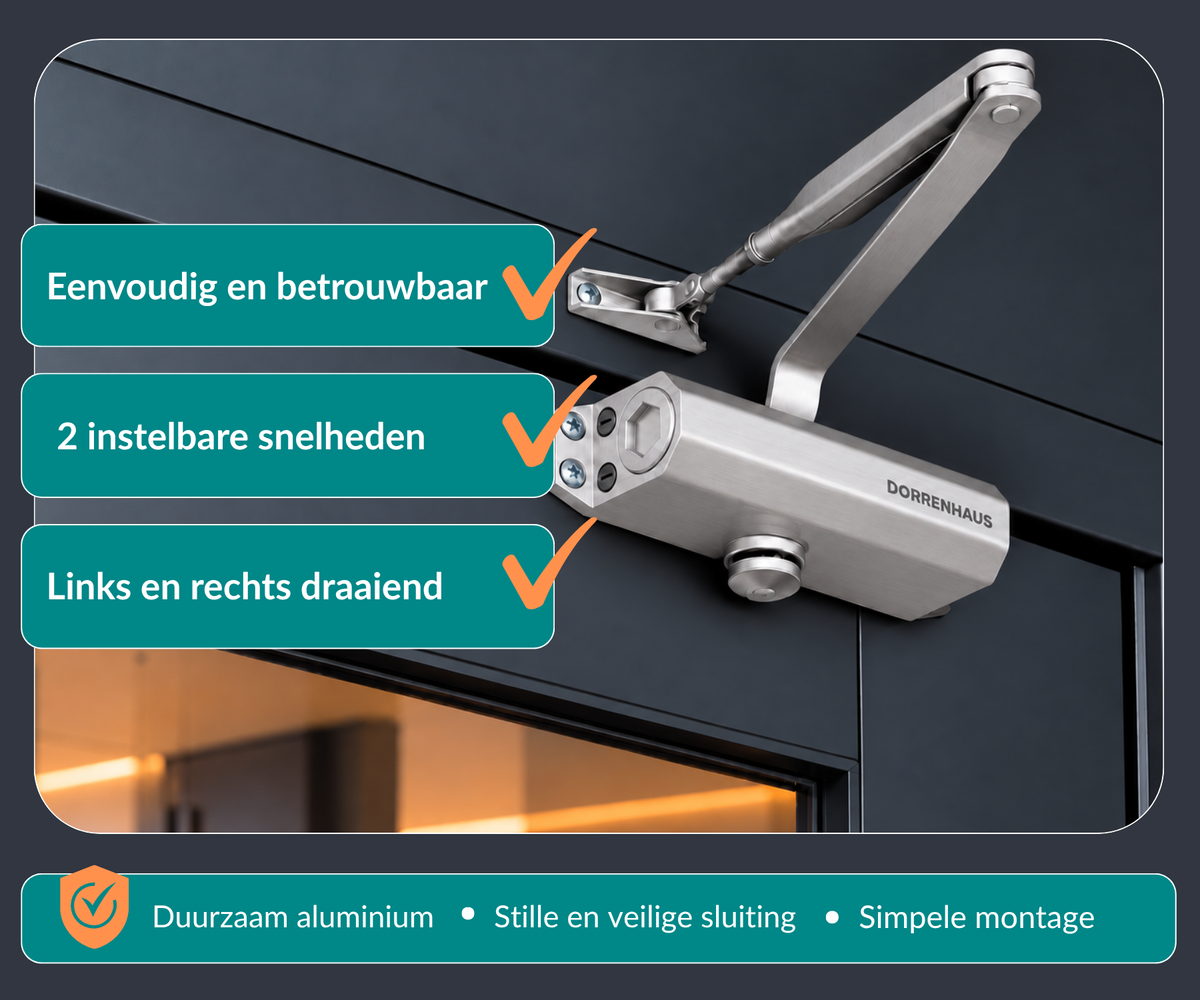

Two independently adjustable closing speeds
For left- and right-turning doors
small and powerful model

Closing force 20-60 KG
For doors up to 1000mm wide
Suitable for frame and door leaf installation
Complies with NEN 1154 standard for fire-resistant doors

Quantity

Payment Options

View full details

Advantages and disadvantages

D-503 door closer Dorrenhaus (20-60KG)

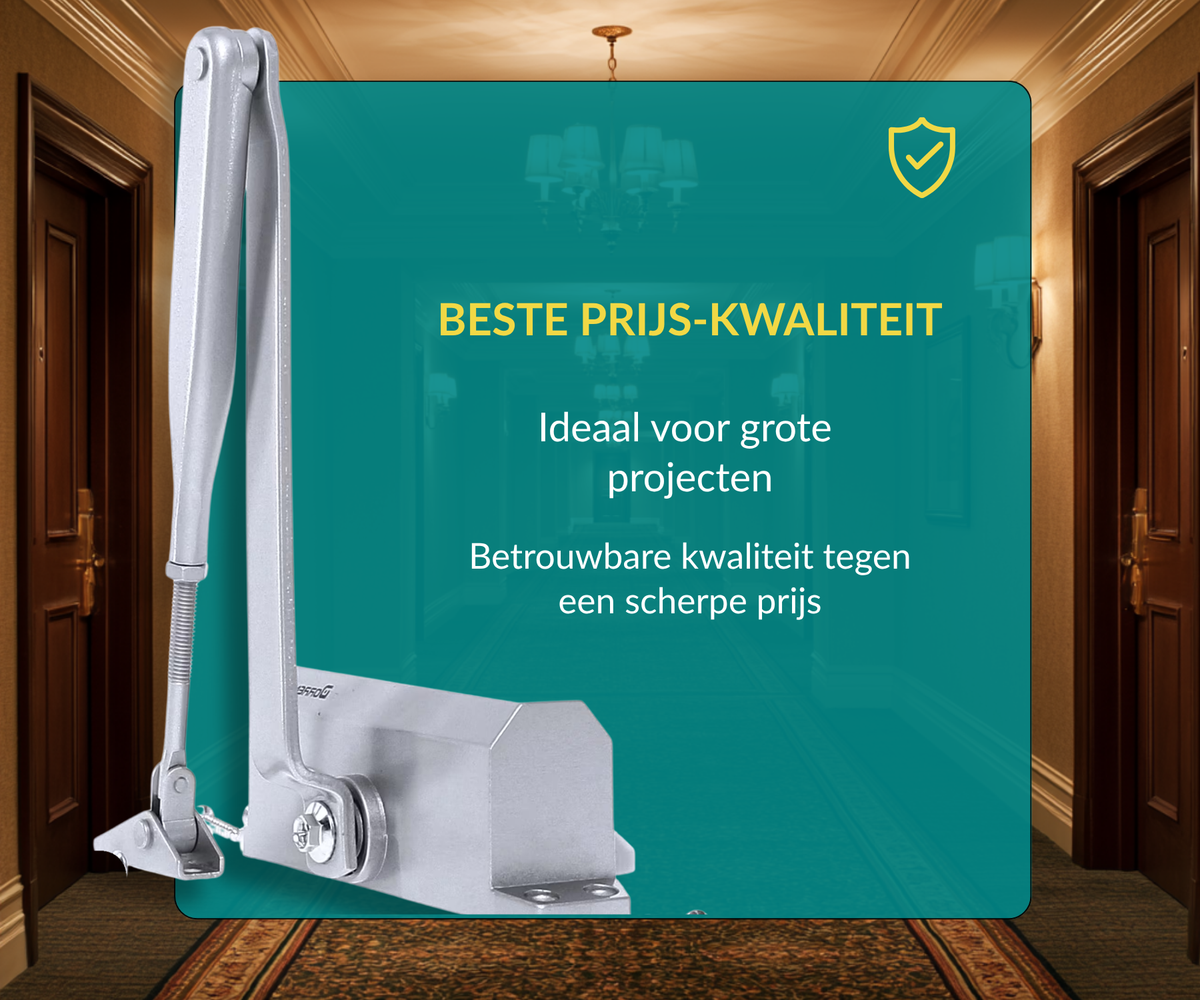

Excellent price-quality ratio, making this Türschließer very interesting for large-scale projects.
Türschließer from the brand Dorrenhaus – German reliability and long service life.
Comes complete with all necessary mounting materials and accessories. Ready for installation and use immediately.

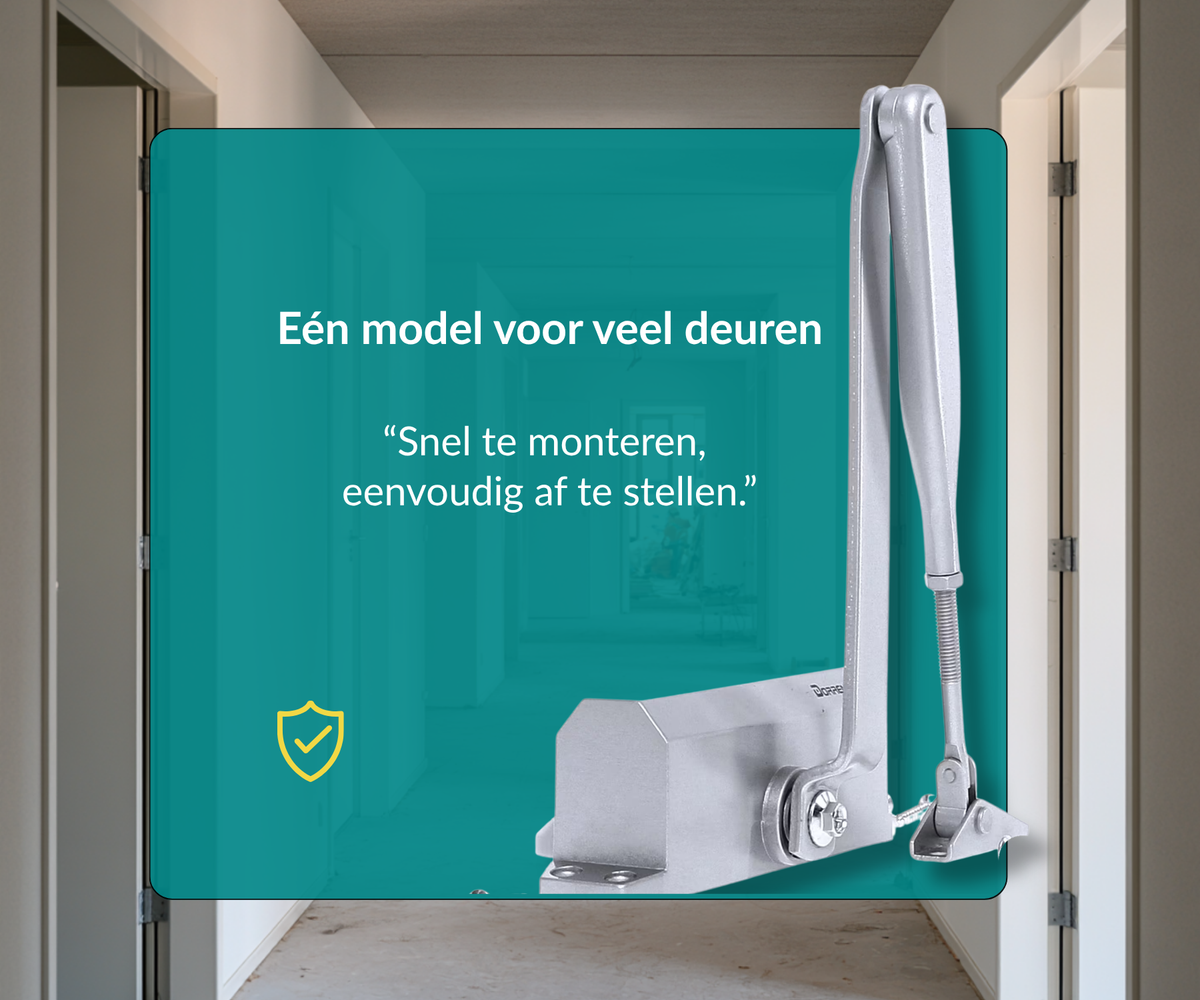

This Türschließer is suitable for almost all residential and light commercial applications. Installation is simple and quick, without complex settings – ideal for projects where efficiency is important.

Due to the design for less intensive use, this Türschließer has less advanced adjustment options.

Description

Affordable and reliable door closer for daily intensive use.
The Dorrenhaus D 503 door closer is a sturdy and user-friendly solution for doors weighing 20-60 kg. Compliant with the EN1154 standard, which means this door closer meets the fire safety requirements of the fire brigade. Ideal for homes, apartment buildings, offices, and light commercial applications.

Installation options

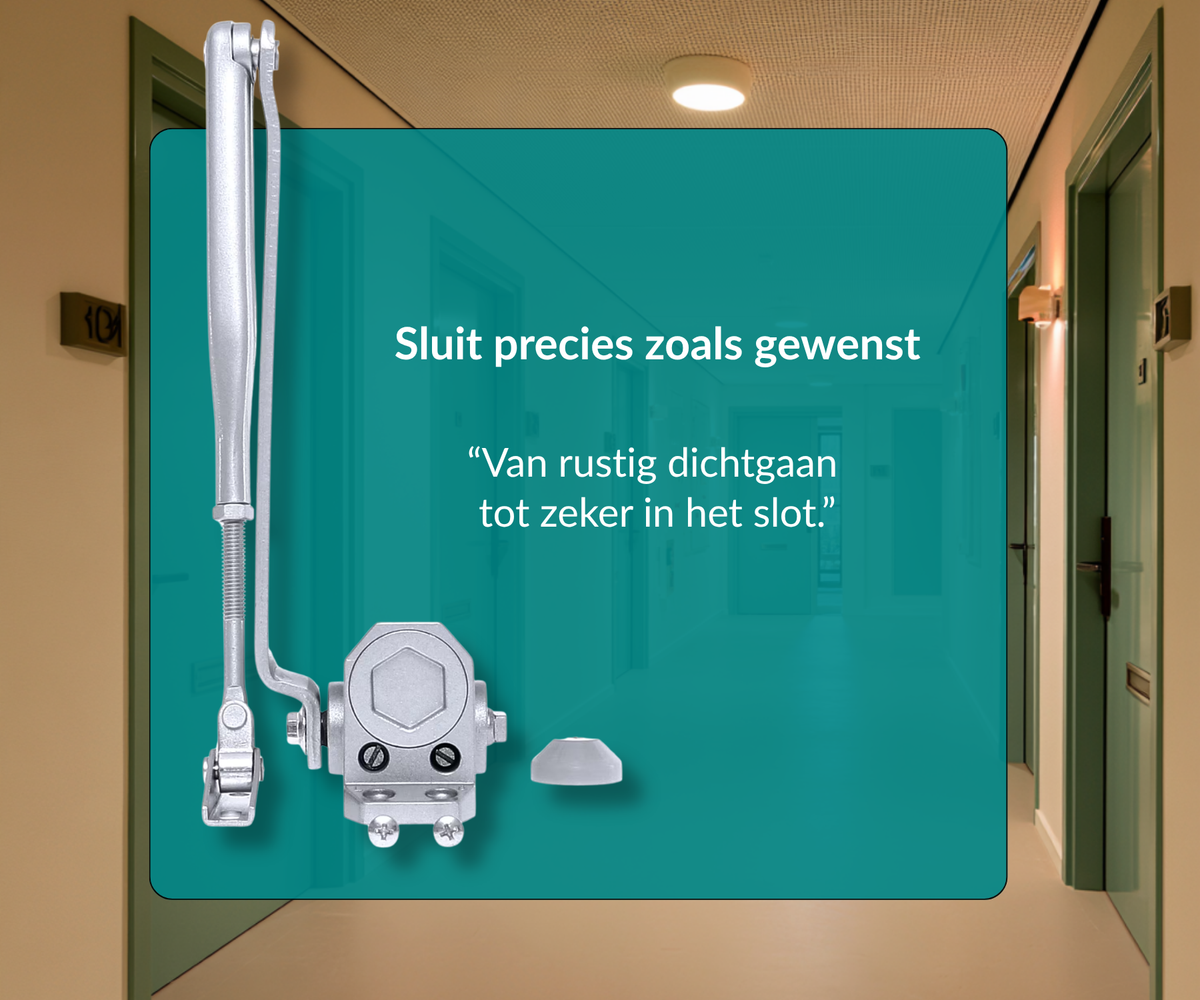

The door closer features an adjustable closing speed and final stroke. This allows the closing speed of the first 150 degrees to be adjusted as desired, while the last 30 degrees (final stroke) can be set separately. This ensures controlled and reliable closing in every situation.

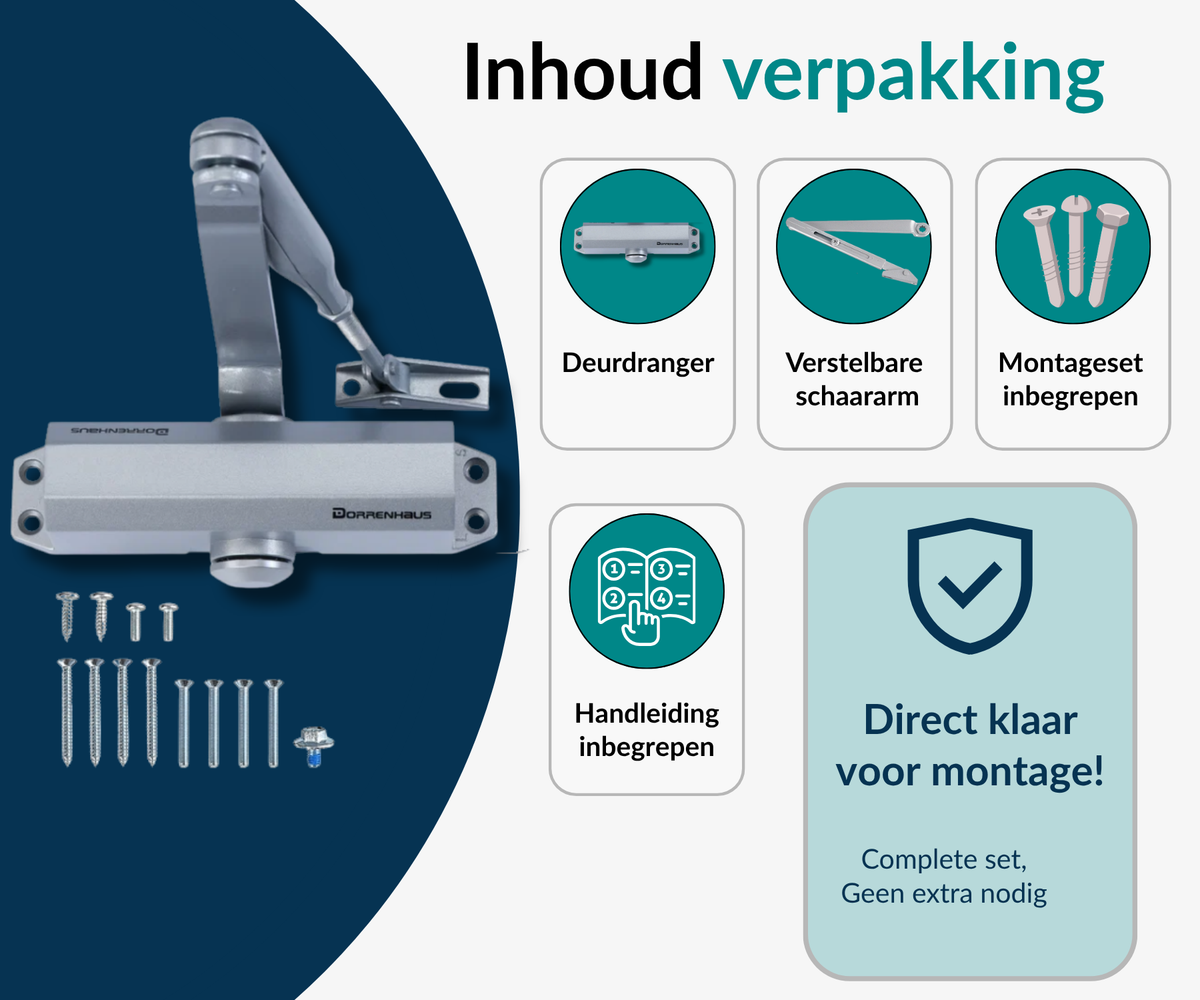

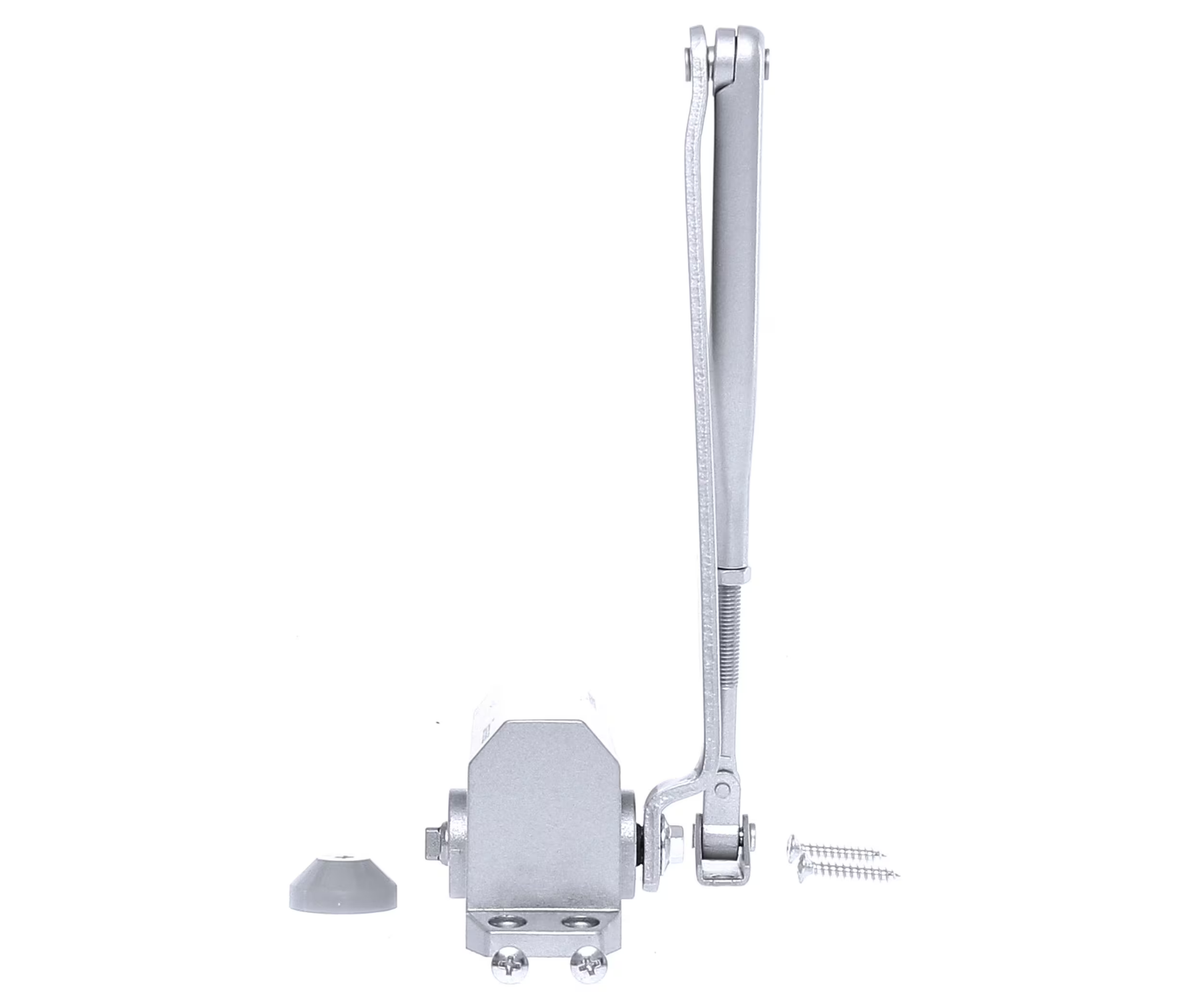

In the box

Türschließer
Scissor arm (adjustable via thread)
Screws and mounting material
Manual
Protective cap for the shaft

Technical specifications

Specification Details	Details
Version	Articulated arm / scissor arm
Color	Silver-colored
Closing force	EN1, EN 2, EN 3
Swing direction	Left and right swinging
Brand	Dorrenhaus
Variable initial and final speed	Yes
Adjustable closing speeds	Yes
Safety valve against damage	No
Door width	Up to 1100 mm
Weight of your door	20-60 KG
Door leaf mounting	On hinge side or pull side
Frame mounting	On non-hinge side or push side
Application	Residential or non-intensive
Hold-open function	no
Maximum adjustable opening angle	no

Frame installation

Door closer on the frame, arm on the door, you push the door away from you when opening.

Push and Pull side

This door closer can be used for both the push side and the pull side

Door leaf installation

The door closer on the door, arm on the frame, you pull the door towards you when opening.

Assembly

This door closer is suitable for left- and right-opening doors.

Videos

See below available videos about this product.

Manuals

For more information about the installation, download the manual below.

D-503-installation-manual

Installation advice

Tip: Fully open the door and tighten both adjustment screws of the Türschließer.
If done correctly, the door will stay open and will not close.
Then slowly turn the correct adjustment screw a little open so that the door closes gently.
Then slowly turn the correct adjustment screw a little open so that the door closes gently.
If the door still does not close completely, slowly turn the other adjustment screw open to control the speed at which the door latches.
This way you can adjust the full closing speed to your liking.

★ ★ ★ ★ ★
