Dorrenhaus D-3036-H-HO doorcloser with slide arm and hold-open function (40-150 kg)

Dorrenhaus D-3036-H-HO doorcloser with slide arm and hold-open function (40-150 kg)

  • ✔️Hold-open function integrated into the sliding rail
  • ✔️Suitable for door widths up to 1500 mm
  • ✔️Suitable for doors up to 150 kg
  • ✔️Mounting on door leaf or frame
  • ✔️Suitable for inward and outward swinging doors
  • ✔️Suitable for left- and right-hand opening doors
  • This heavy door closer is designed for professional and intensive use
  • With a hold-open feature that allows you to keep the door open at the desired angle easily
  • Protected against forceful opening (backcheck safety)
  • Force adjustable after assembly with Allen key
  • Two independently adjustable closing speeds
  • Adjustable closing force for doors weighing 40-150KG
  • For doors up to max 1500 mm wide
  • Suitable for frame and door leaf installation
  • For left- and right-turning doors
€200,80
€200,80
Taxes included. (€33,99)Shipping calculated at checkout.

71 Stuks op voorraad morgen bezorgd

Payment Options

Twijfel je of dit past? → Klik hier voor keuzehulp

✔️ Ordered before 20:59, delivered tomorrow

✔️ At least 2 years warranty

✔️ Free exchanges within 30 days

✔️ Helpdesk +31 (0) 30 2072029

View full details
  • Description
  • Technical specifications
  • Videos
  • Manuals
    • ​

  • Fast delivery

    Ordered before 22:59 Delivered the next day

  • Pay afterwards

    Pay easily afterwards for business and private customers

  • Personal support

    Call our team until 5:00 PM at (+31) 030-2072029

Advantages and disadvantages

Dorrenhaus D-3036-H-HO doorcloser with slide arm and hold-open function (40-150 kg)

  • The wide adjustment range of 40-150 kg makes this Türschließer suitable for most heavier doors, ideal for intensive use.
  • Equipped with a backcheck function that protects the door from strong wind and acts as a shock absorber.

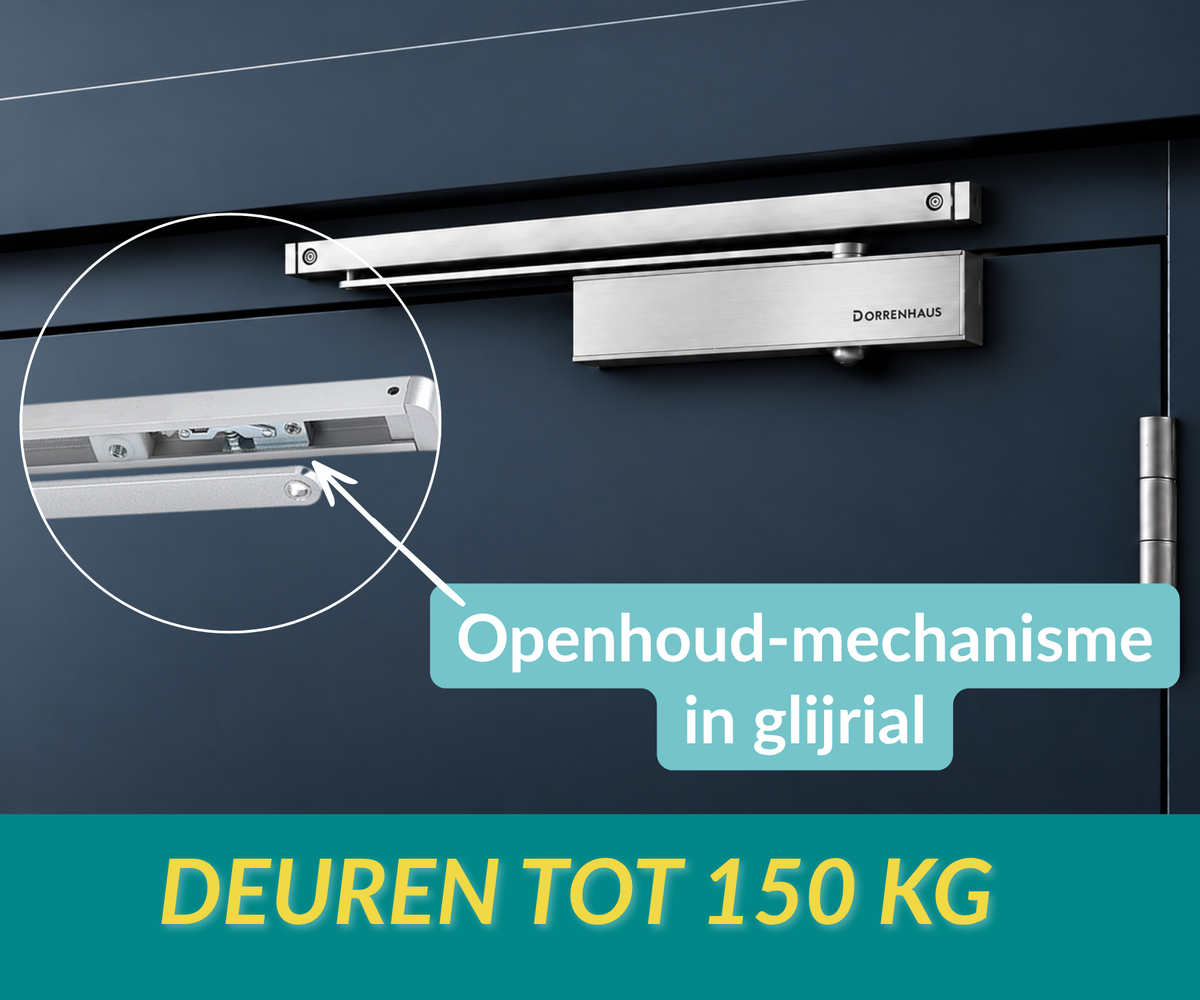

  • Equipped with a hold-open function in the slide rail, so the door can remain in the desired position.
  • The closing force can be easily adjusted with the included Allen key.
  • Due to the powerful operation, this model is not suitable for light interior doors; it may feel too heavy on small or light doors.

Description

Powerful door closer with sliding arm, hold-open function, and backcheck. Suitable for heavy doors weighing 40–150 kg in semi-professional and professional settings where reliability and control are important.

Note: Because this door closer is equipped with a hold-open function, it must not be used on fire-resistant doors for compartmentation.

Installation options

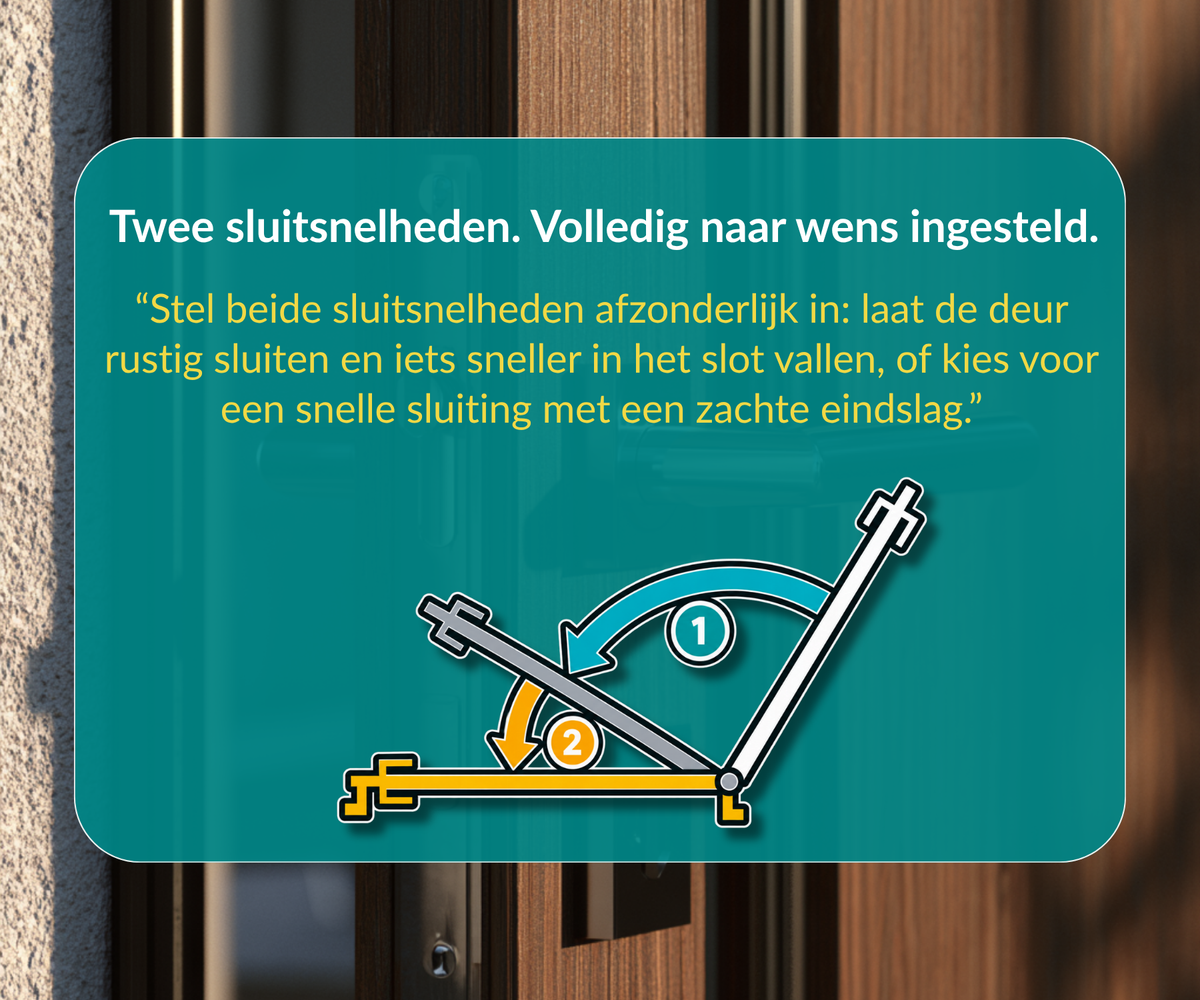

The closing speed and final stroke are adjustable separately, allowing the first 150 degrees and the last 30 degrees to be fully set as desired. For example, the door can close quickly and latch slowly, or vice versa. The integrated backcheck function prevents damage from opening too forcefully, such as by strong wind. The closing force can be easily changed with the included Allen key.

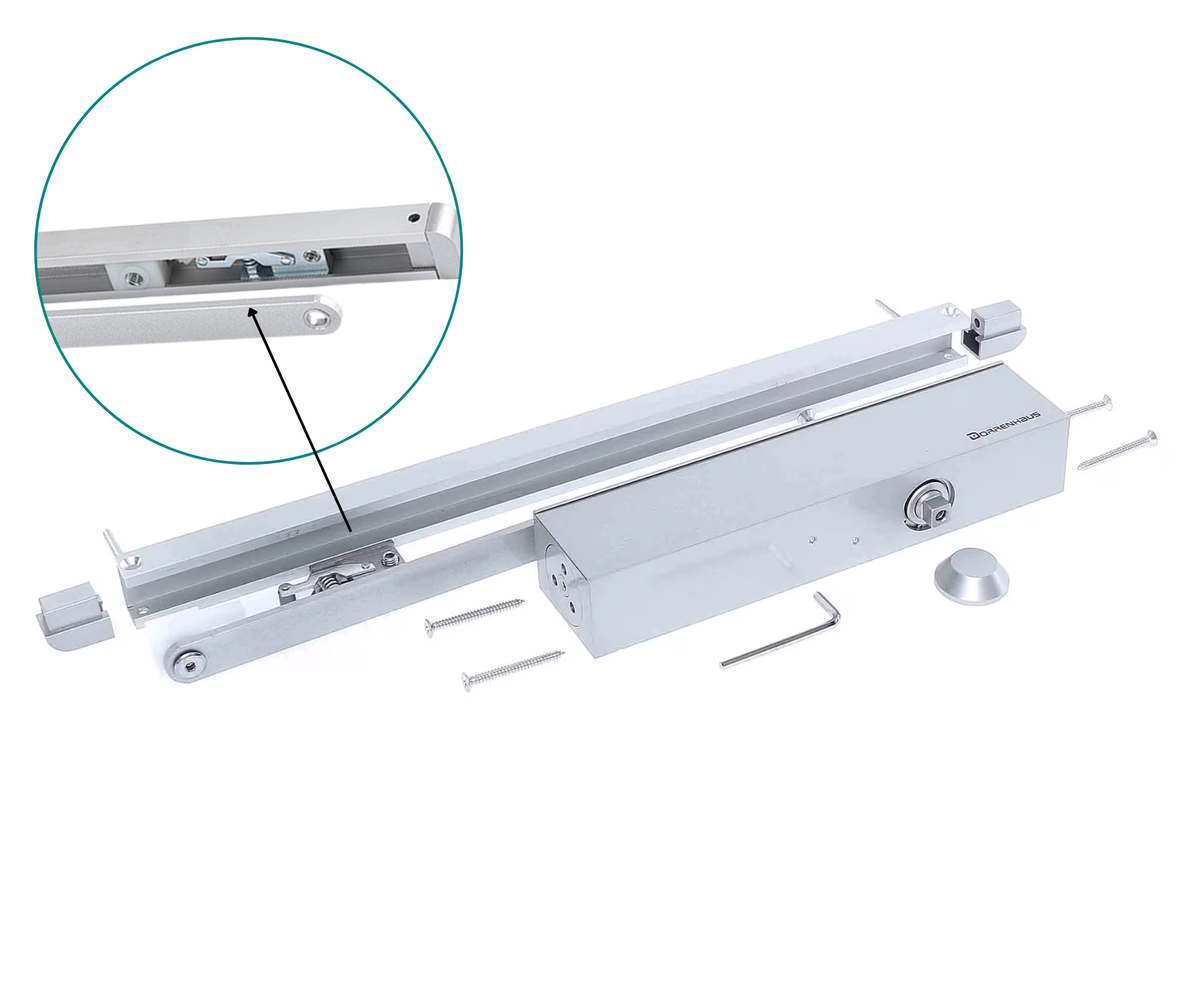

The hold-open function in the sliding rail makes it possible to set the opening angle yourself. With a slight movement, the door closer is taken out of the hold-open position and the door closes automatically.

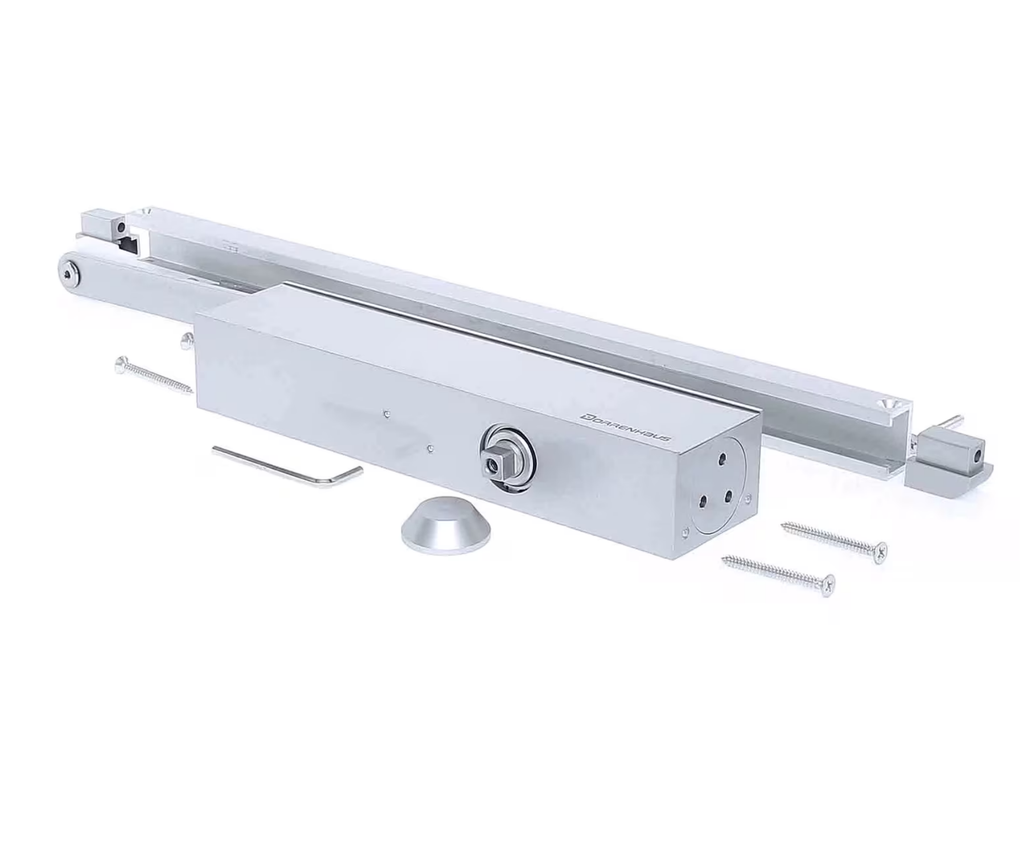

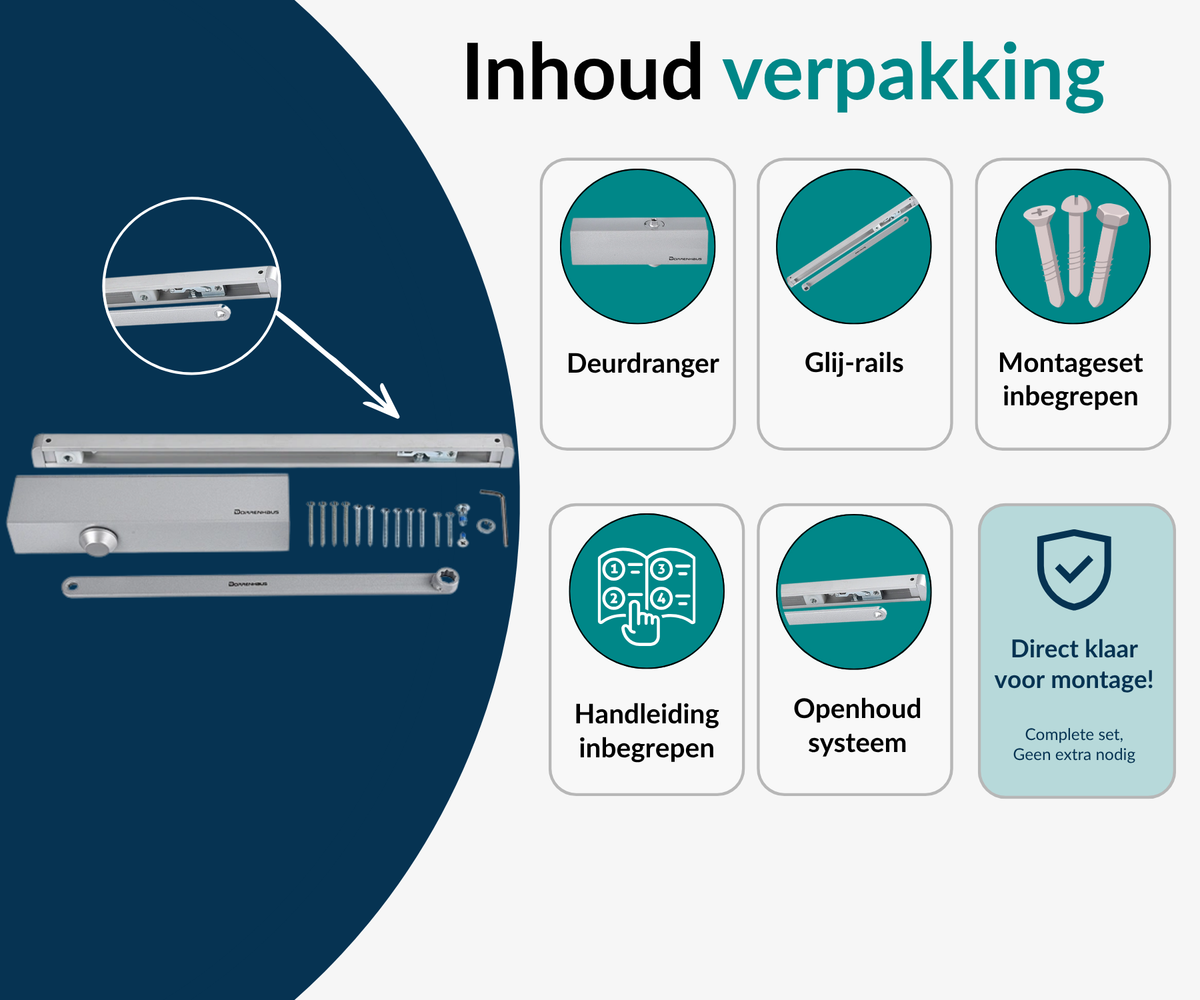

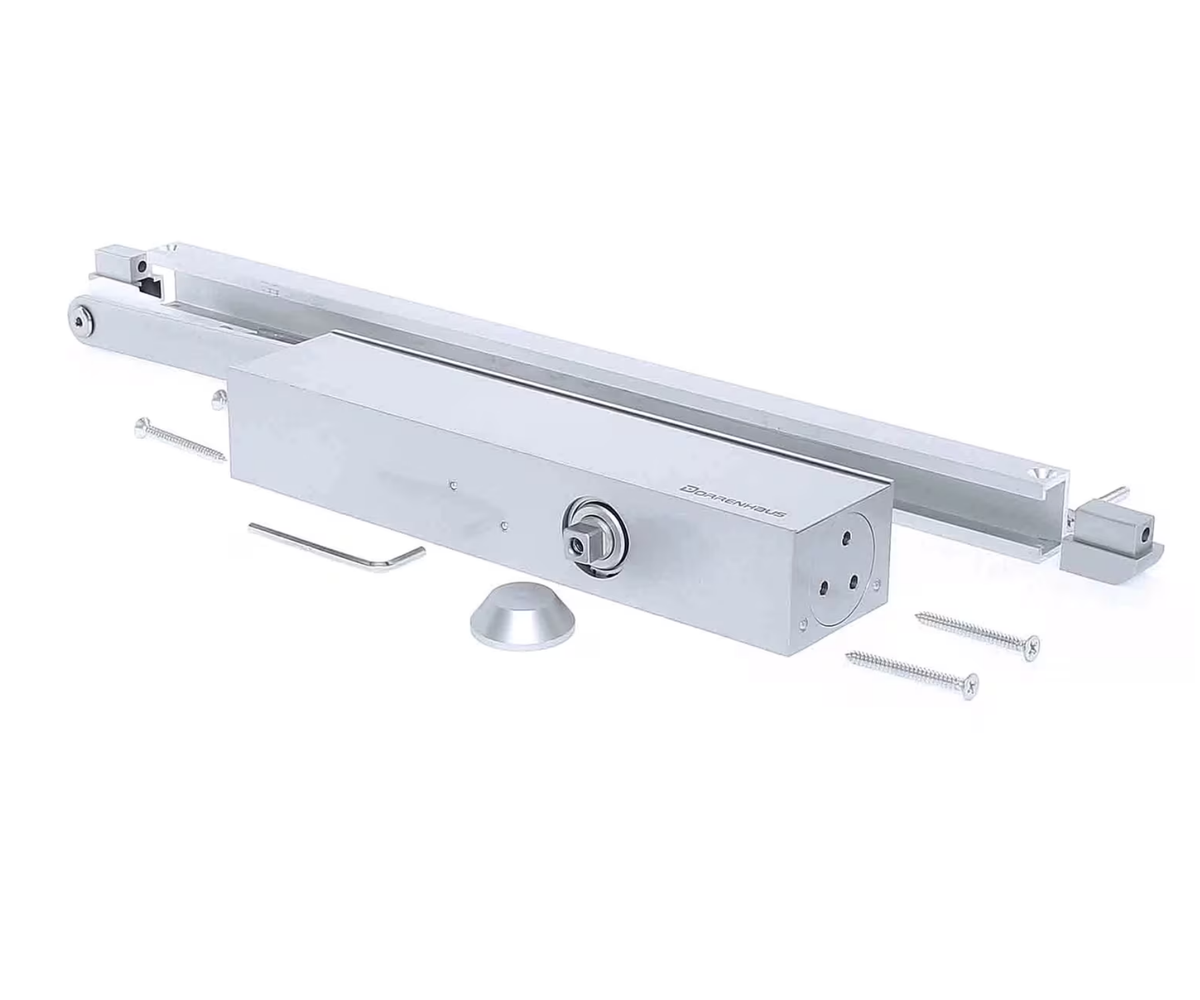

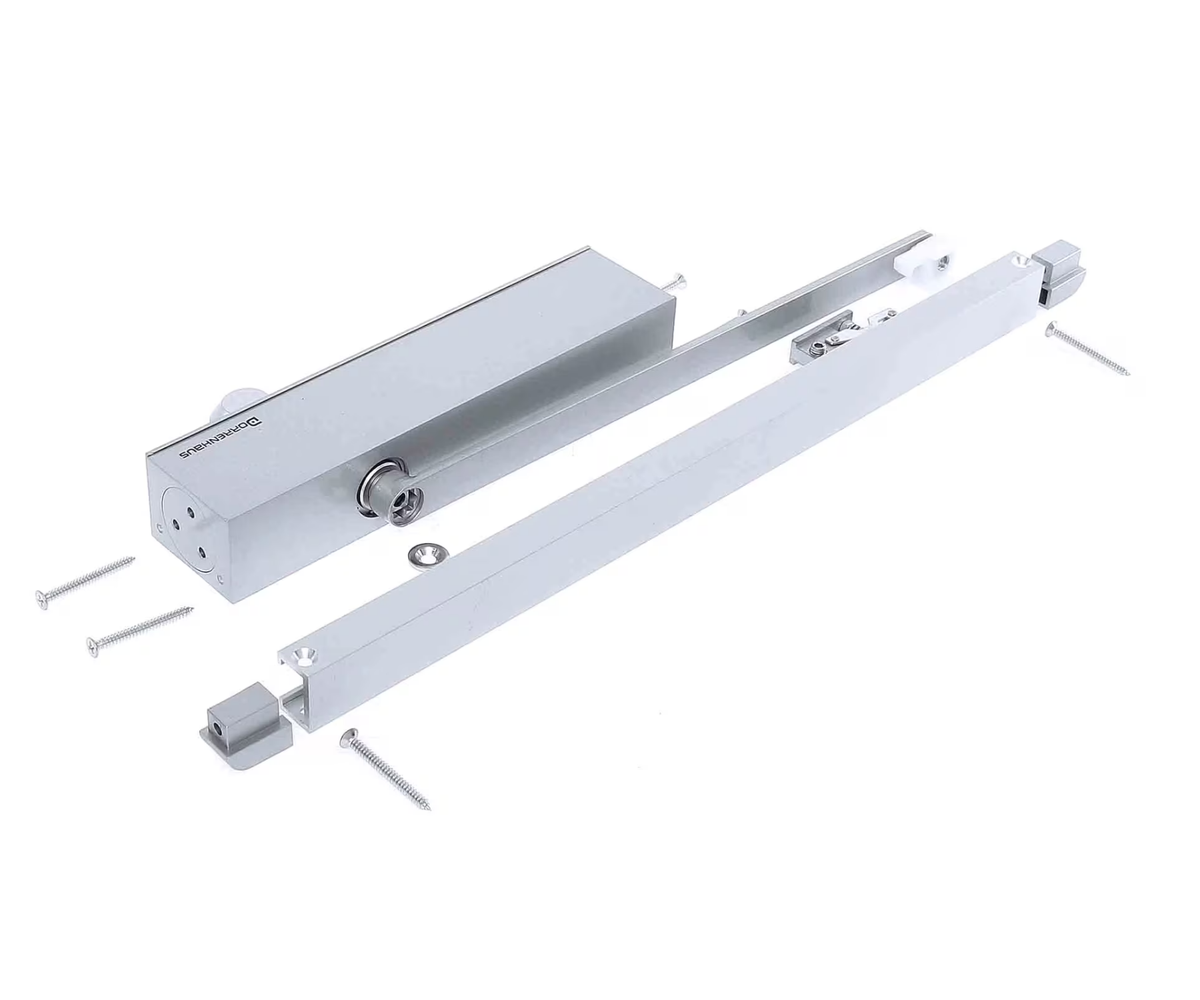

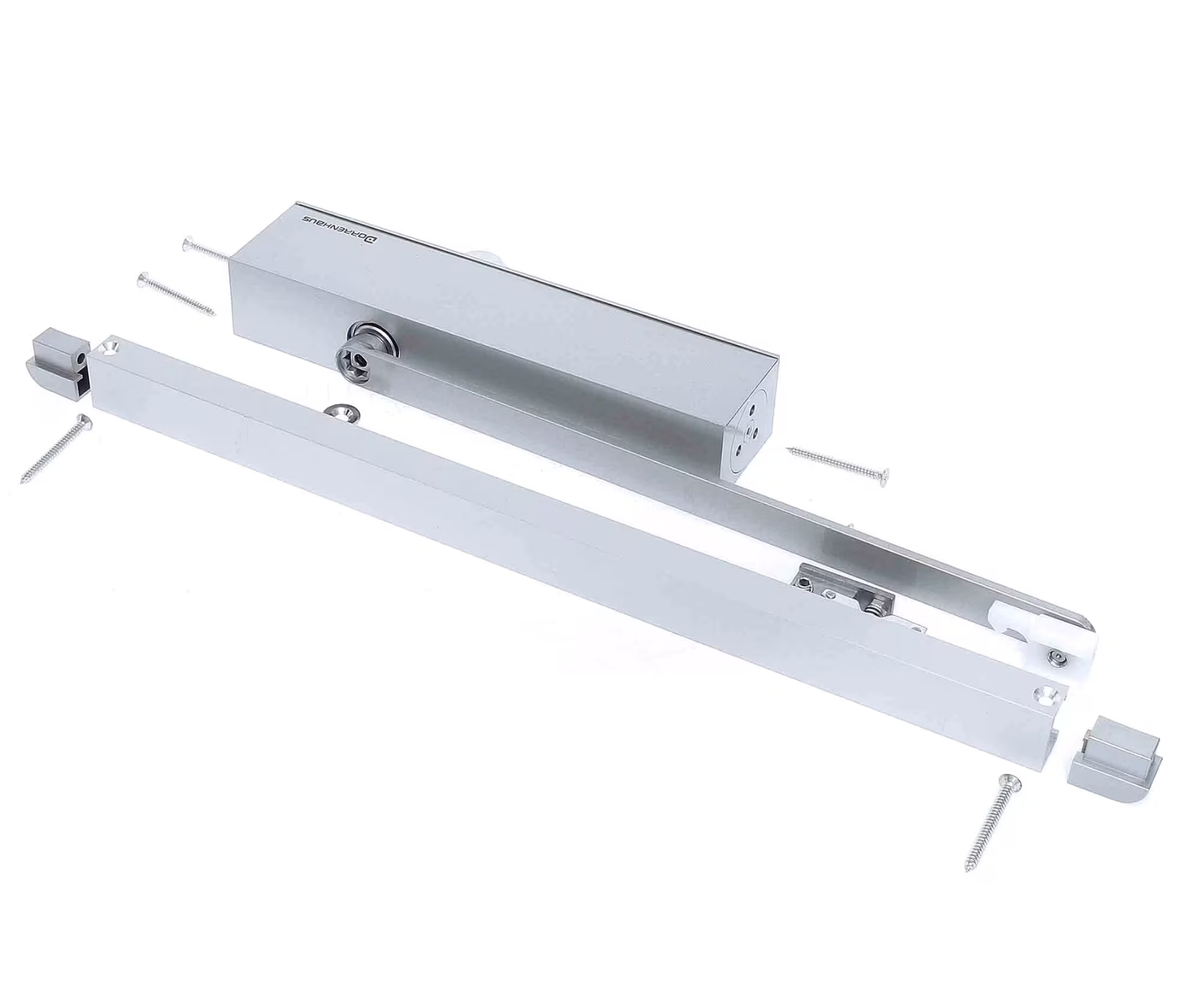

In the box

Door closer
Sliding arm
Hold-open mechanism
Screws and mounting material
Manual
Protective cap for the shaft
Front cover
Allen key

A selection of our reviews

VERIFIED VIA TRUSTPILOT

★★★★★ 4.7 based on 112 reviews
★ ★ ★ ★ ★
Verified

Protective cage smoke detector sports hall

We have installed 12 of them in the sports hall. No more damage from playing football and it still works perfectly with the test alarm.

Tessa
★ ★ ★ ★ ★
Verified

Compact door closer with sliding arm

Net model, hardly visible on the door. Installation was simple, although no drilling template was included. Closes smoothly.

Erik
★ ★ ★ ★ ★
Verified

Protective cover for thermostat in care facility

User-friendly solution. Visitors can no longer adjust the temperature, but it remains easy to read. We will order more.

Annemieke
★ ★ ★ ★ ★
Verified

Sleek cover, neatly finished

The thermostat cover looks nice in the hallway. Children can no longer reach it and the material feels sturdy. The assembly video was helpful.

Ruben
★ ★ ★ ★ ★
Verified

Heavy-duty door closer for exterior door

Our outside door always slammed shut. With this door closer, it closes smoothly, even in the wind. Adjusting the speed was child's play.

Meike
★ ★ ★ ★ ★
Verified

Protective cage for smoke detector

Sturdy metal cage. Protects against balls in the gym without blocking the alarm signal. Would have liked to see extra screws included in the box.

Joost
★ ★ ★ ★ ★
Verified

Thermostat cover with little key

Exactly what we needed at the office. Colleagues can no longer fiddle with the buttons, yet there is still good airflow all around. Installation with 4 wall anchors, done.

Sanne
★ ★ ★ ★ ★
Verified

Sturdy door closer, quickly installed

Installed on the warehouse door within 20 minutes. The closure is gentle and makes hardly any noise. Mounting plate fit perfectly, clear instructions.

Patrick
<

Sliding-arm door mounting

Door closer on the door, sliding arm on the frame, you pull the door towards you when opening.

Head assembly

Door closer on the frame, sliding arm on the door, you push the door away from you when opening.

Technical specifications of this doorcloser

Specification Details Details
Version Slide arm
Color Silver-colored
Closing force EN3, EN 4, EN 5, EN 6
Swing direction Left and right swinging
Brand Dorrenhaus
Variable initial and final speed Yes
Adjustable closing speeds Yes
Safety valve against damage yes
Door width Up to 1500 mm
Weight of your door 40-150 KG
Door leaf mounting On hinge side or pull side
Frame mounting On non-hinge side or push side
Application professional
Hold-open function yes
Maximum adjustable opening angle yes
Force adjustable after installation yes with included Allen key

Videos

See below available videos about this product.

Manuals

For more information about the installation, download the manual below.

D-3036-installationinstructions-slidingrail manual-D-3036H-sliding-rails-new

How do I adjust my doorcloser

-Tip: Open the door fully and tighten both adjustment screws of the doorcloser
-If done correctly, the door will stay open and will not close.
-Then slowly loosen the correct adjustment screw a little, so the door closes gently.
-Then slowly loosen the correct adjustment screw a little, so the door closes gently.
-If the door still does not close completely, slowly loosen the other adjustment screw to control the speed at which the door latches.
-This way, you can adjust the full closing speed to your preference.
