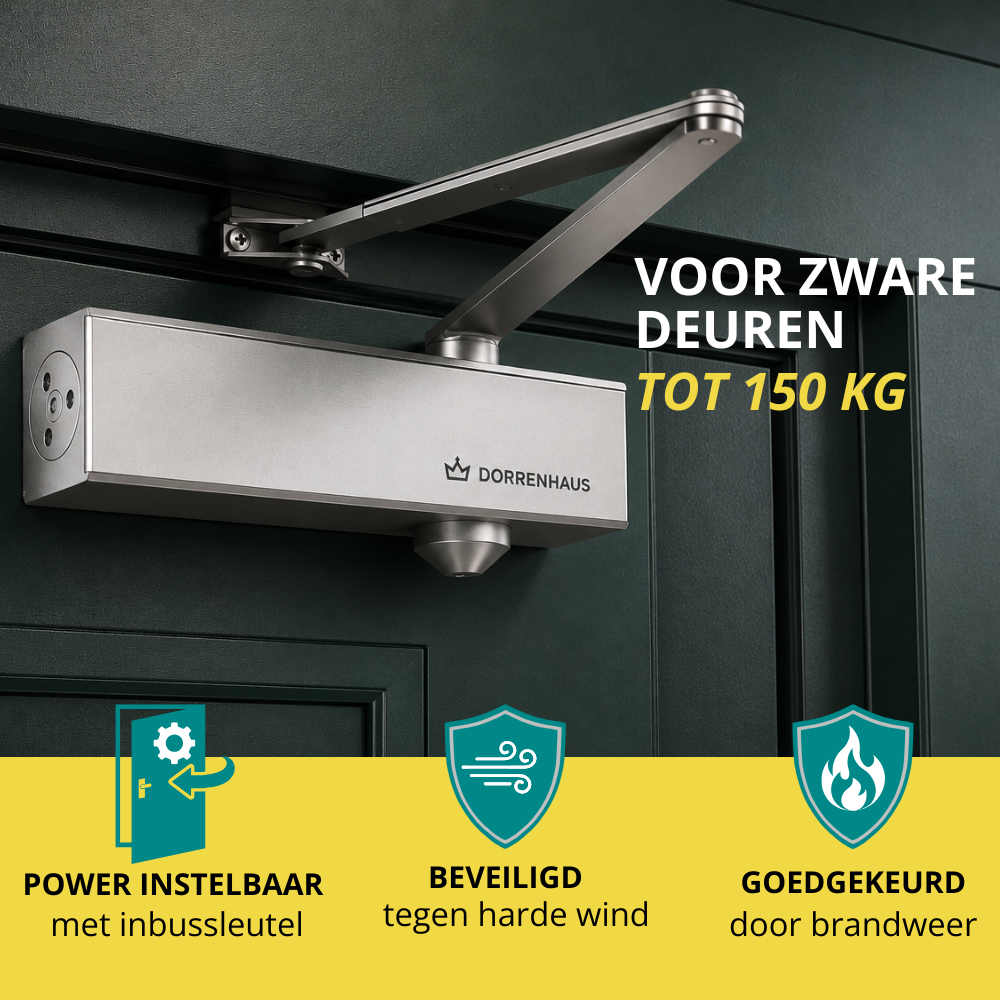

Dorrenhaus D-3036 doorcloser with scissor arm (40-150 kg)

Dorrenhaus D-3036 doorcloser with scissor arm (40-150 kg)

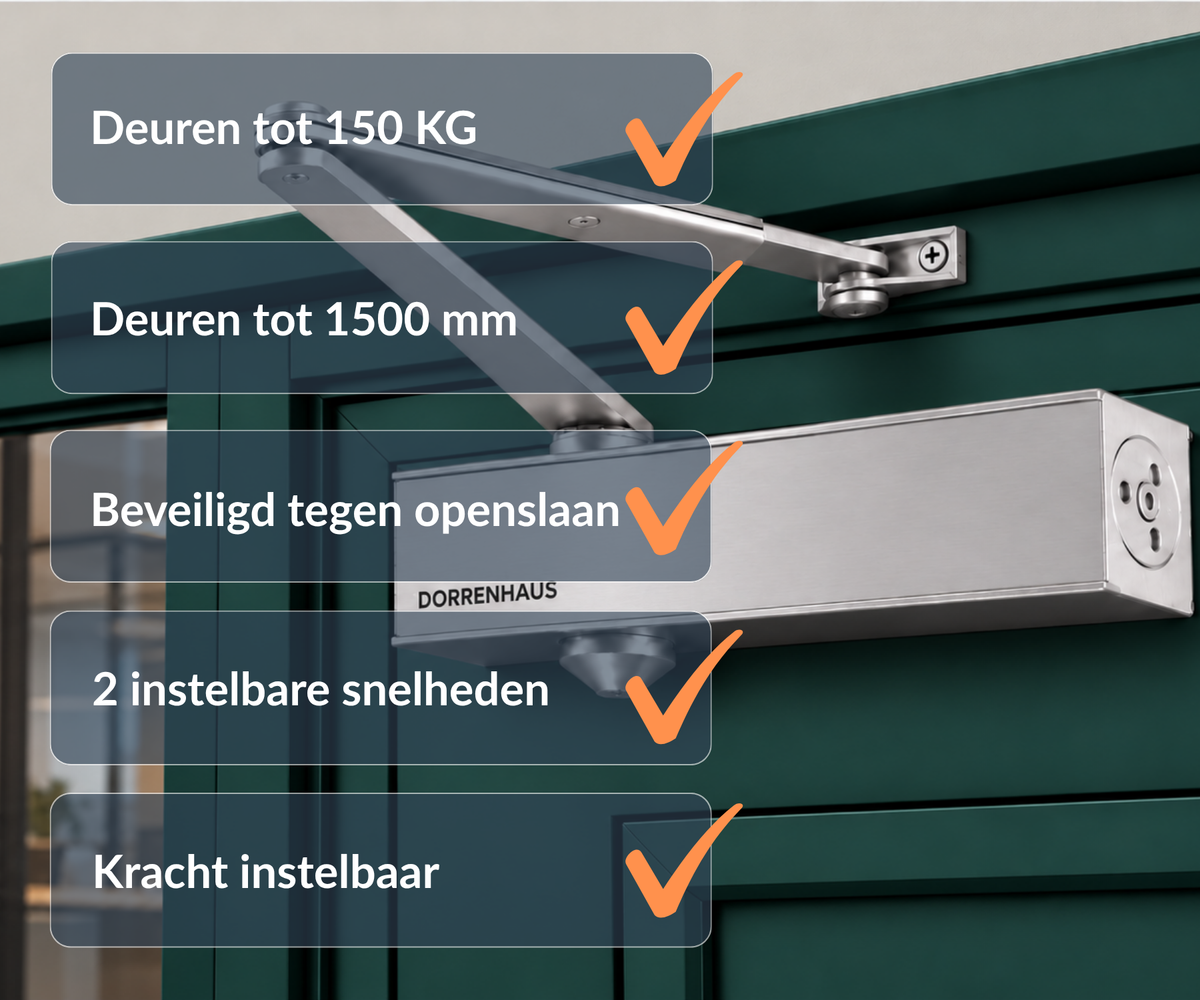

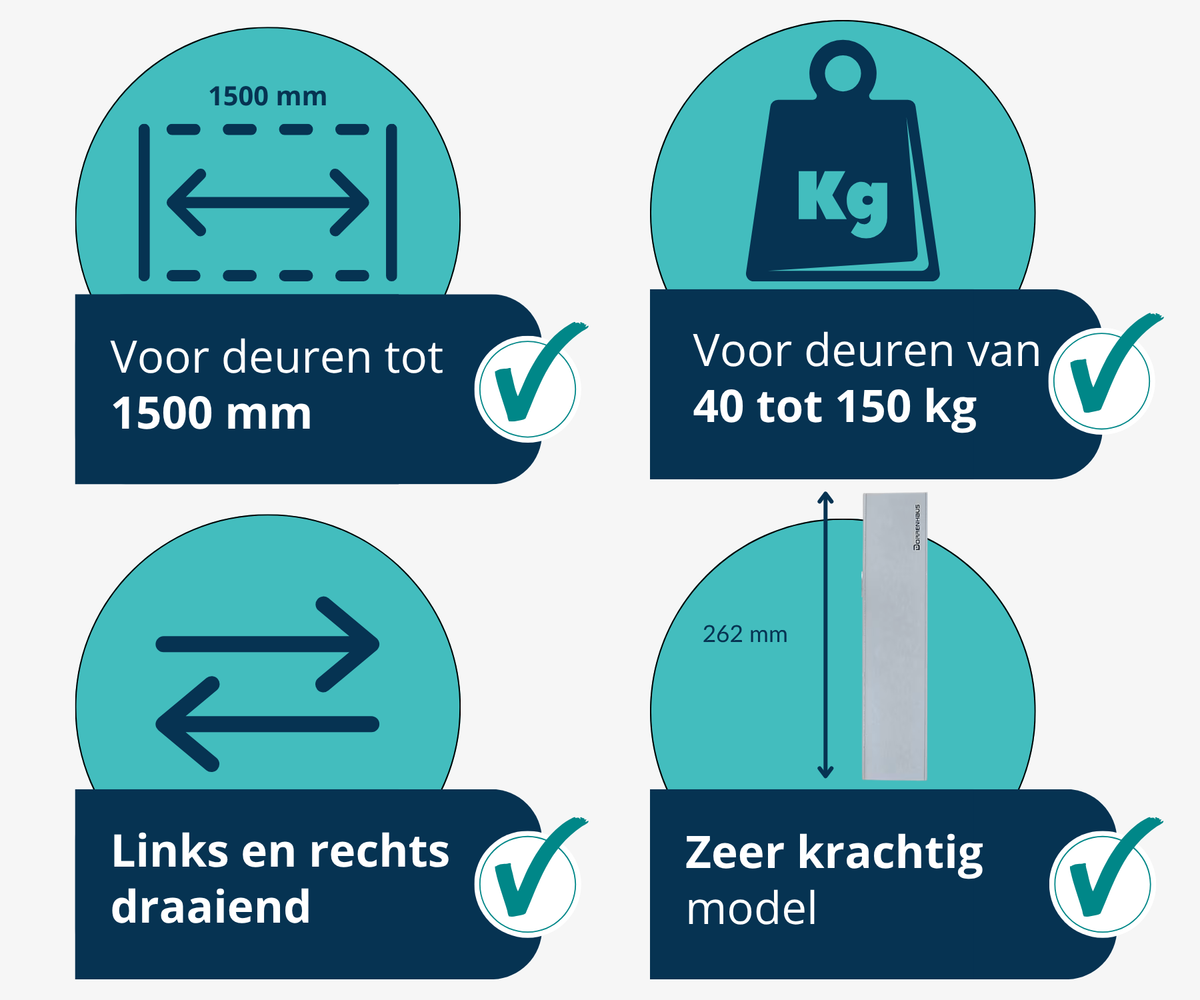

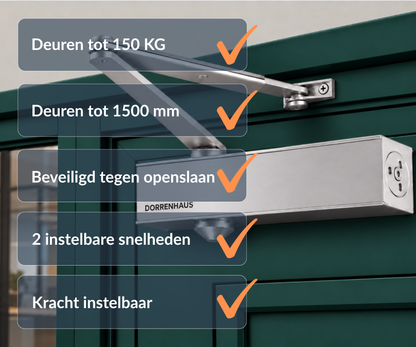

  • ✔️Suitable for door widths up to 1500 mm
  • ✔️Suitable for doors up to 150 kg
  • ✔️Mounting on door leaf or frame
  • ✔️Suitable for inward and outward opening doors
  • ✔️Suitable for left- and right-hand opening doors
  • Protected against forceful opening (backcheck safety)
  • Two independently adjustable closing speeds
  • Force adjustable after assembly with Allen key
  • This heavy door closer is designed for professional and intensive use
  • For doors up to max 1500 mm wide
  • Adjustable closing force for doors weighing 40-150KG
  • For left- and right-turning doors

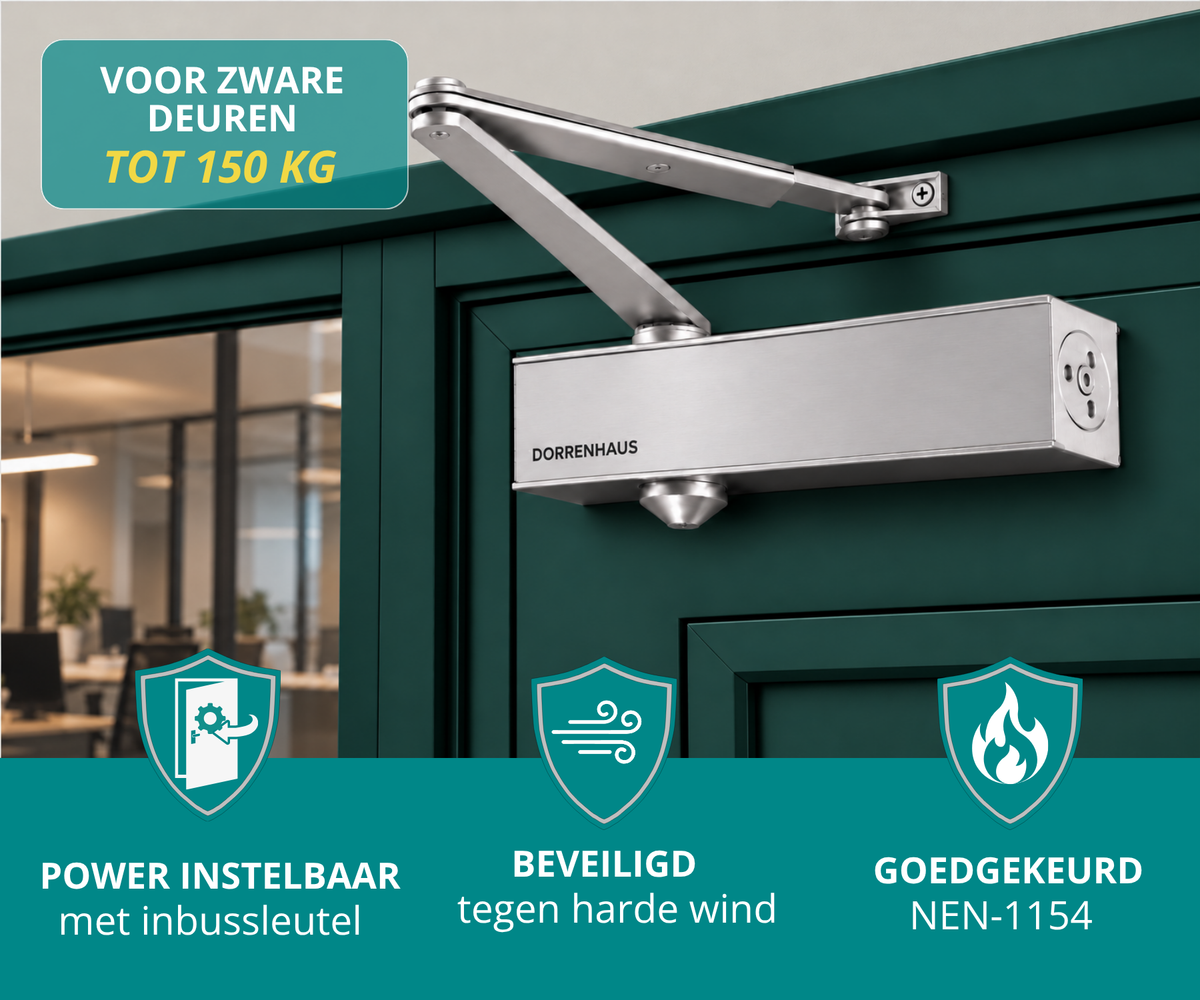

  • Suitable for fire-resistant doors NEN 1154 certified
€147,56
€147,56
Taxes included. (€33,99)Shipping calculated at checkout.

101 Stuks op voorraad morgen bezorgd

Payment Options

Twijfel je of dit past? → Klik hier voor keuzehulp

✔️ Ordered before 20:59, delivered tomorrow

✔️ At least 2 years warranty

✔️ Free exchanges within 30 days

✔️ Helpdesk +31 (0) 30 2072029

View full details
  • Description
  • Technical specifications
  • Videos
  • Manuals
  • Reviews
    • ​

  • Fast delivery

    Ordered before 22:59 Delivered the next day

  • Pay afterwards

    Pay easily afterwards for business and private customers

  • Personal support

    Call our team until 5:00 PM at (+31) 030-2072029

Advantages and disadvantages

Dorrenhaus D-3036 doorcloser with scissor arm (40-150 kg)

  • Thanks to the adjustable force variation of 40-150 kg, this Türschließer is widely applicable and suitable for professional applications with intensive and heavy use.

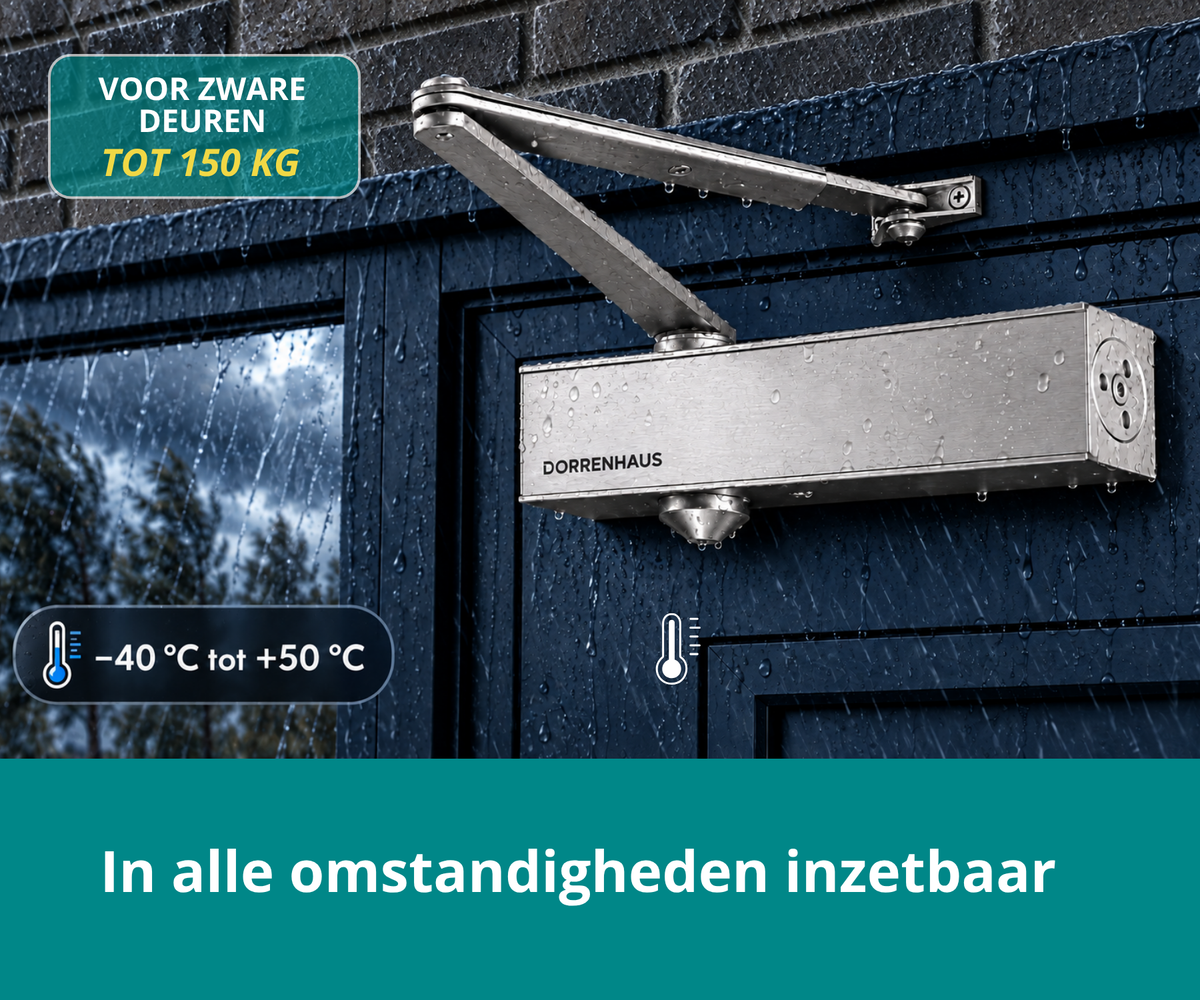

  • Equipped with a special backcheck function that protects the door against, for example, strong wind and acts as a shock absorber. This prevents damage caused by sudden gusts of wind.
  • The closing force can be easily adjusted after installation with the included Allen key.
  • This powerful Türschließer is less suitable for light interior doors due to the high closing force.

Description

This heavy door closer is designed for professional and intensive use. Thanks to the adjustable closing force of 40-150 kg, it is suitable for almost all heavy doors in commercial and industrial settings. Sturdy, reliable, and equipped with backcheck for extra protection.
The door closer D 3036 is easy to install and has a closing force of 3 - 4 - 5 - 6 (40-150 kg) according to the EN1154 standard. This standard is used by the fire brigade in connection with fire resistance.

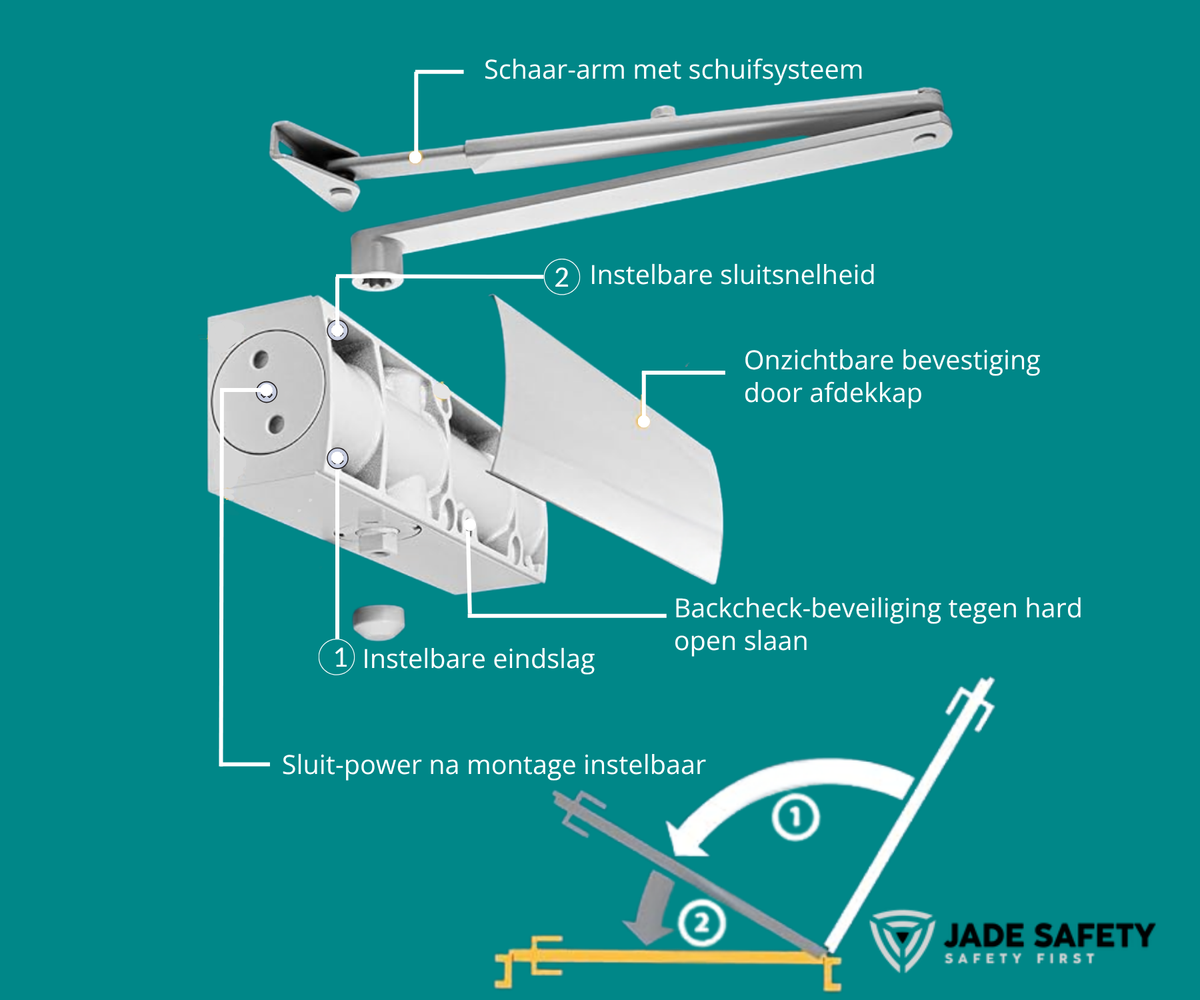

Installation options

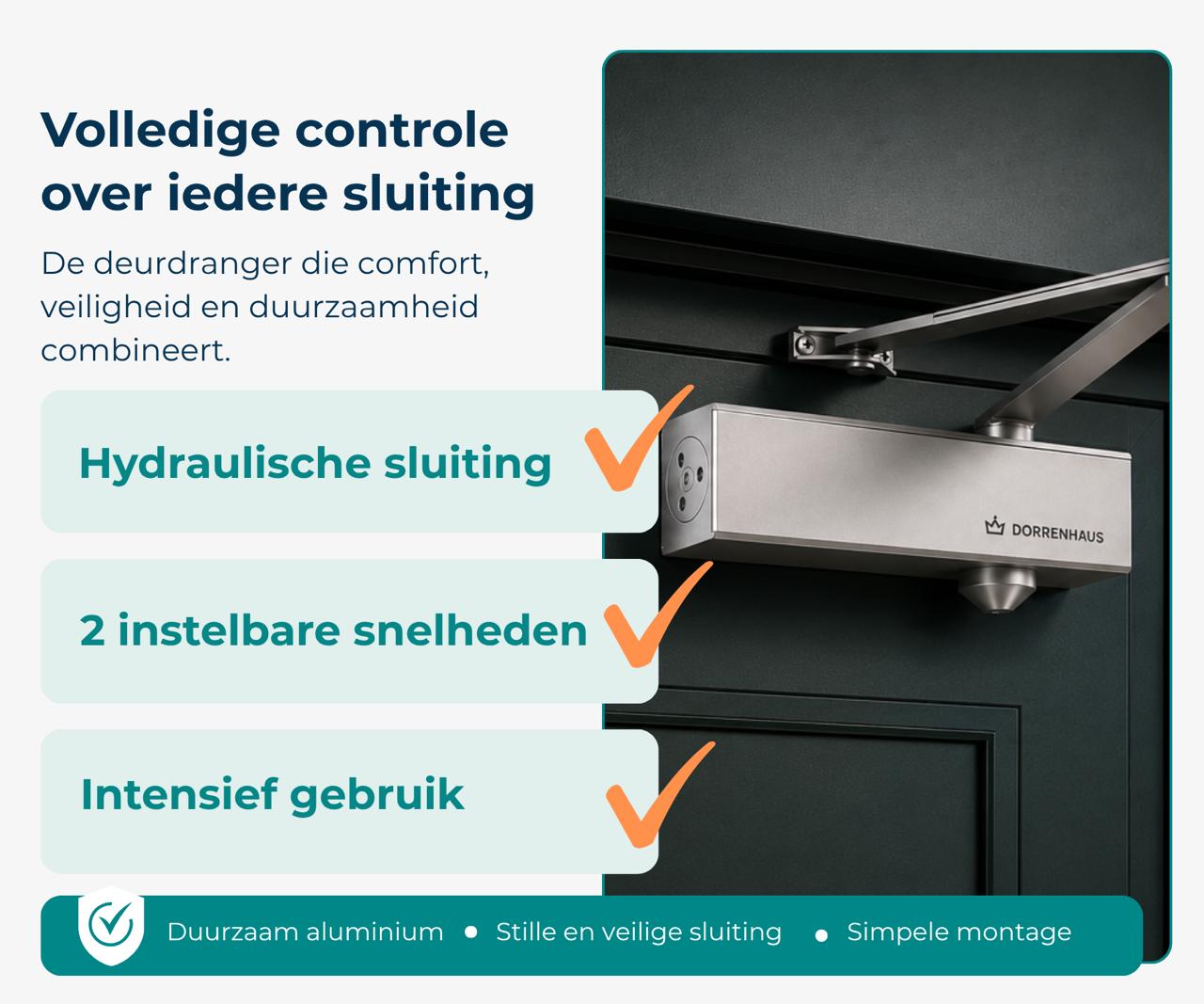

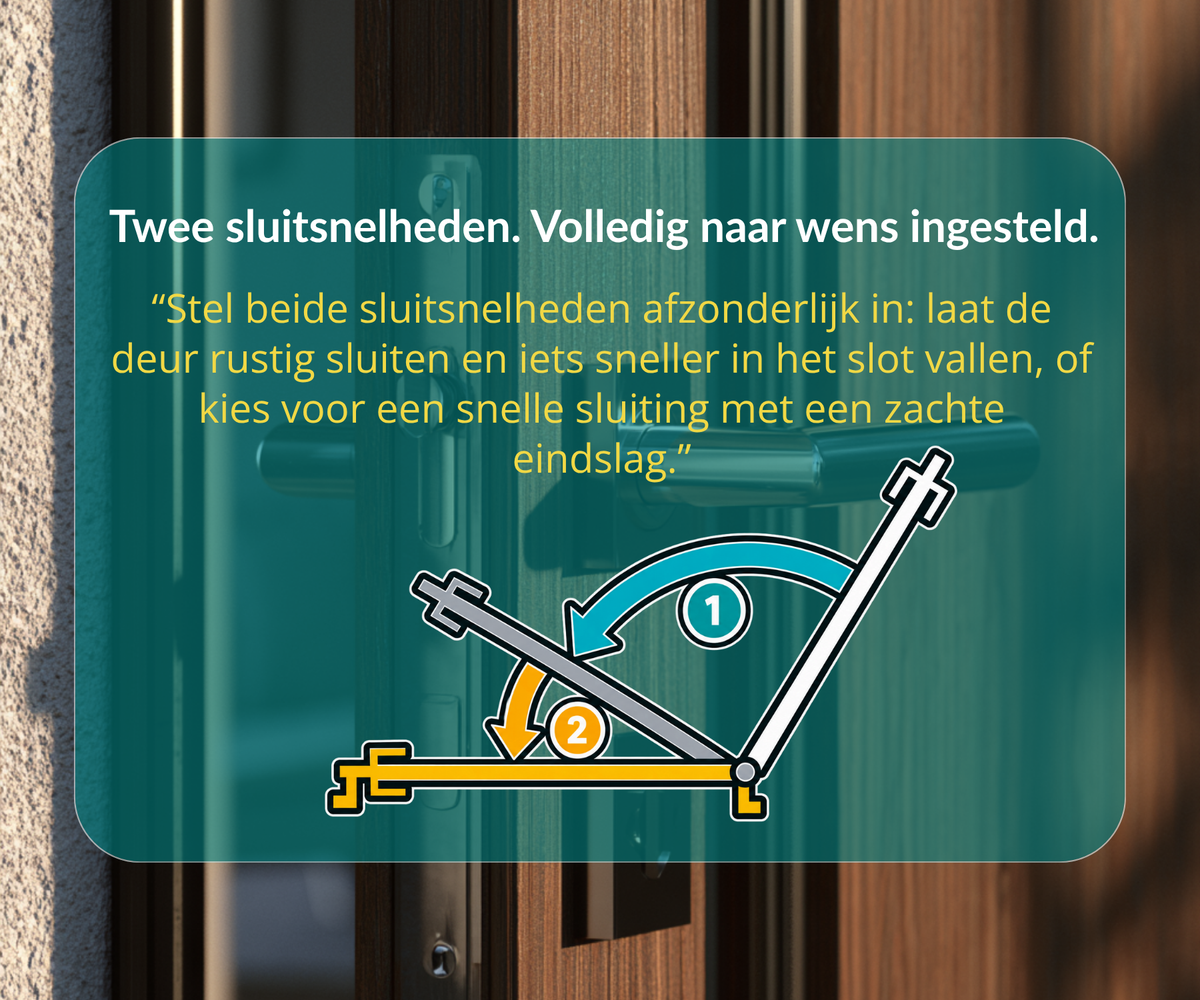

This door closer has an adjustable closing speed and final stroke.
You can set the closing speed for the first 150 degrees as desired and adjust the last 30 degrees of the final stroke separately.
For example, you can choose a quick closing and a slow final stroke, or vice versa.

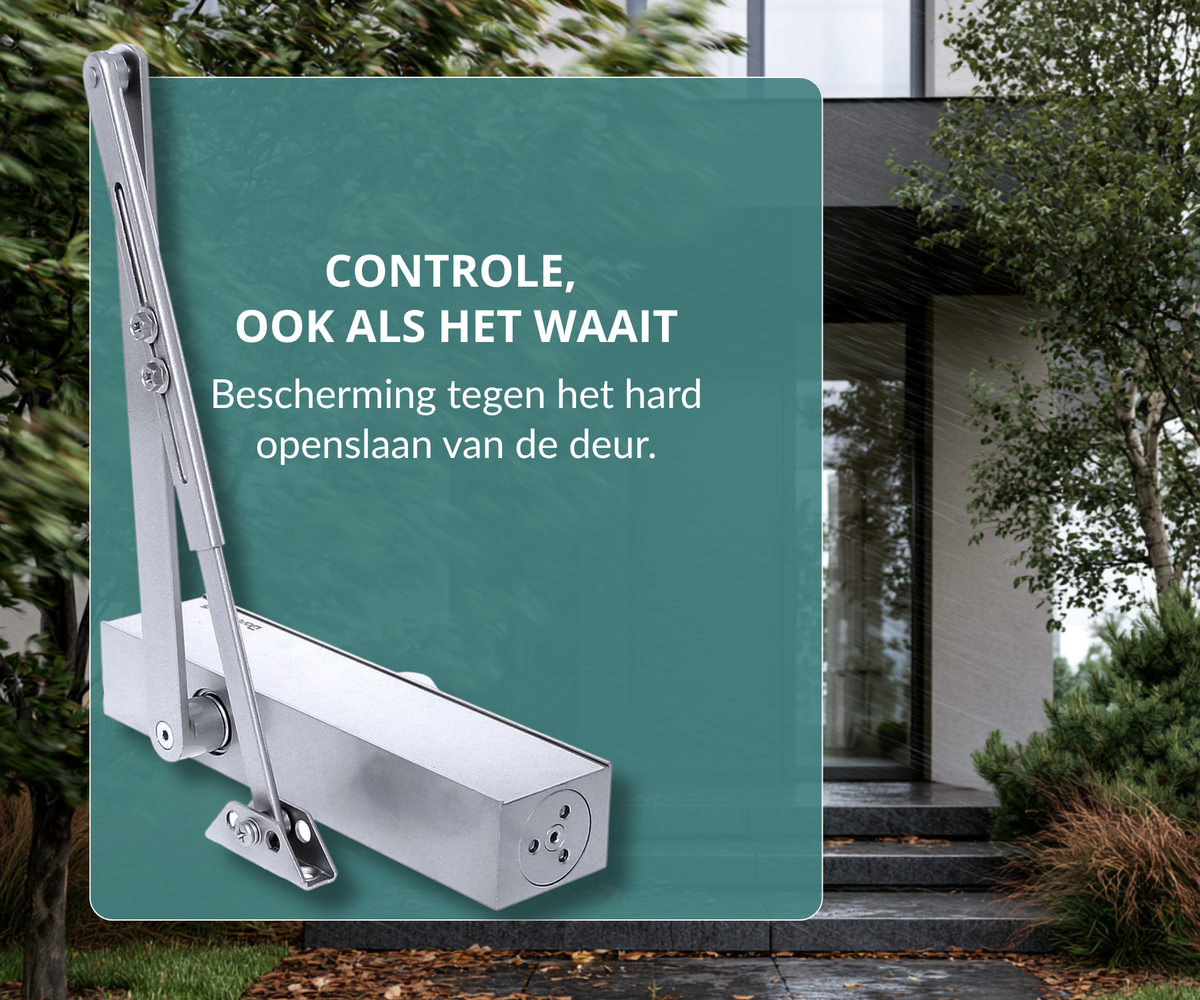

Additionally, this door closer features a backcheck function that protects the door against strong wind.
The closing force can be easily adjusted after installation using the included Allen key.

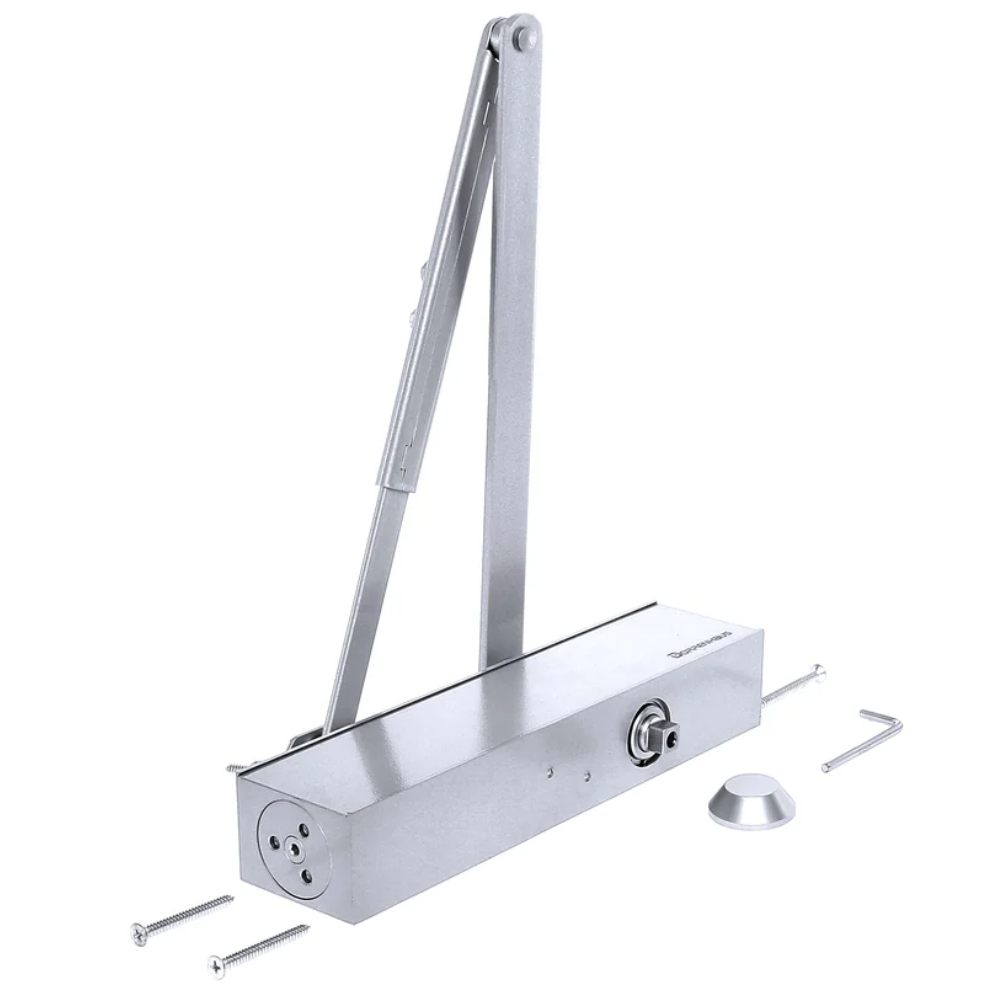

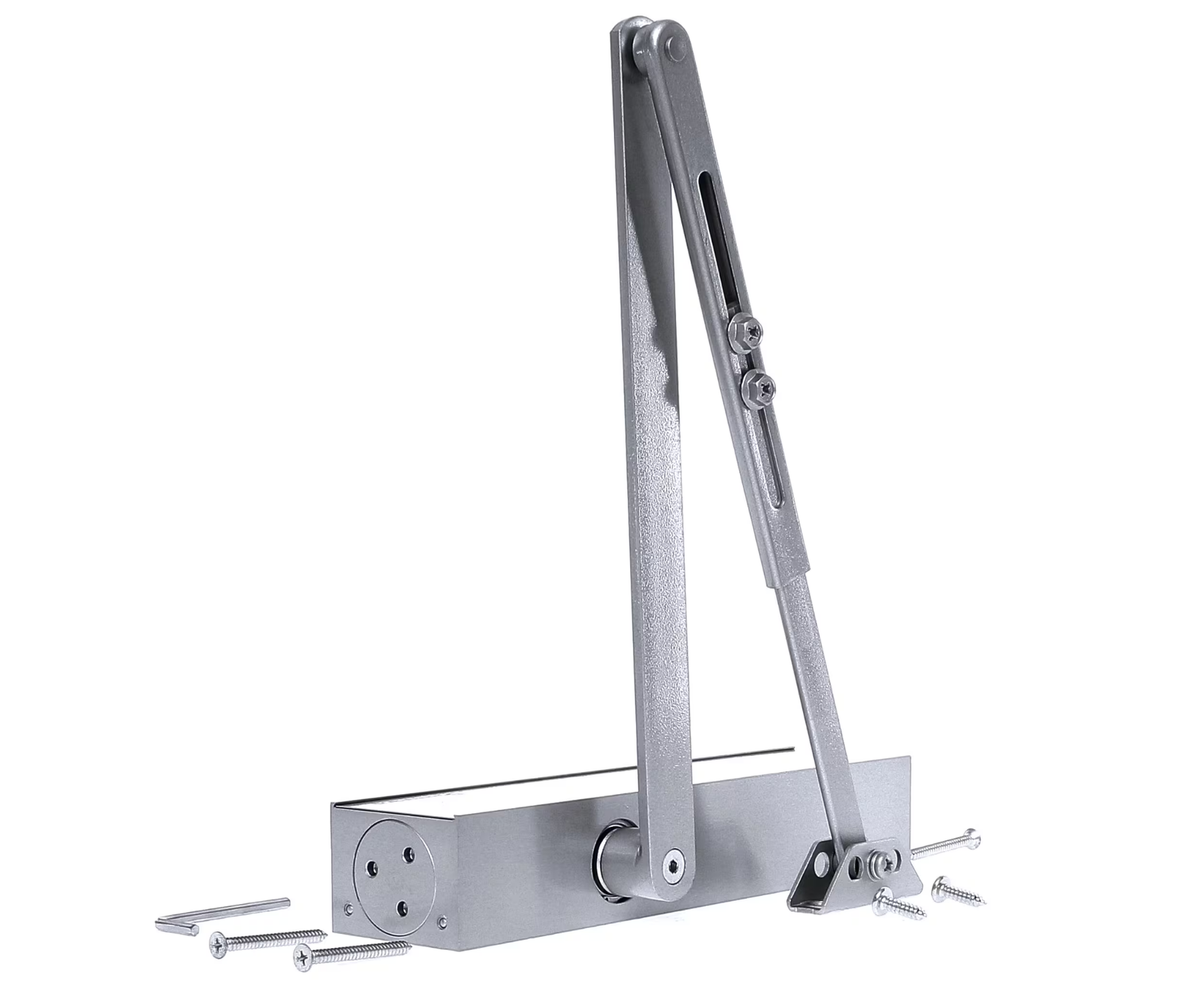

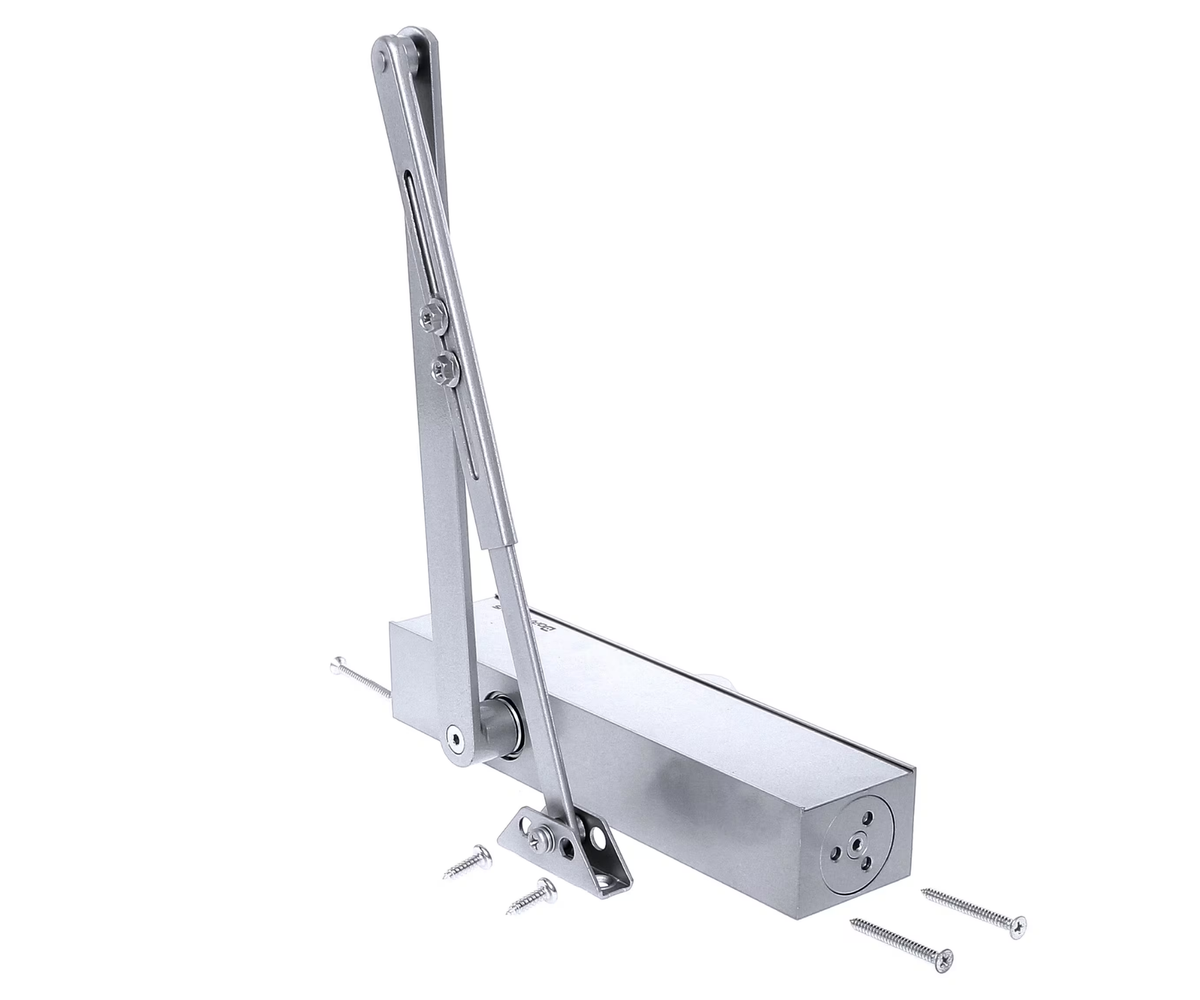

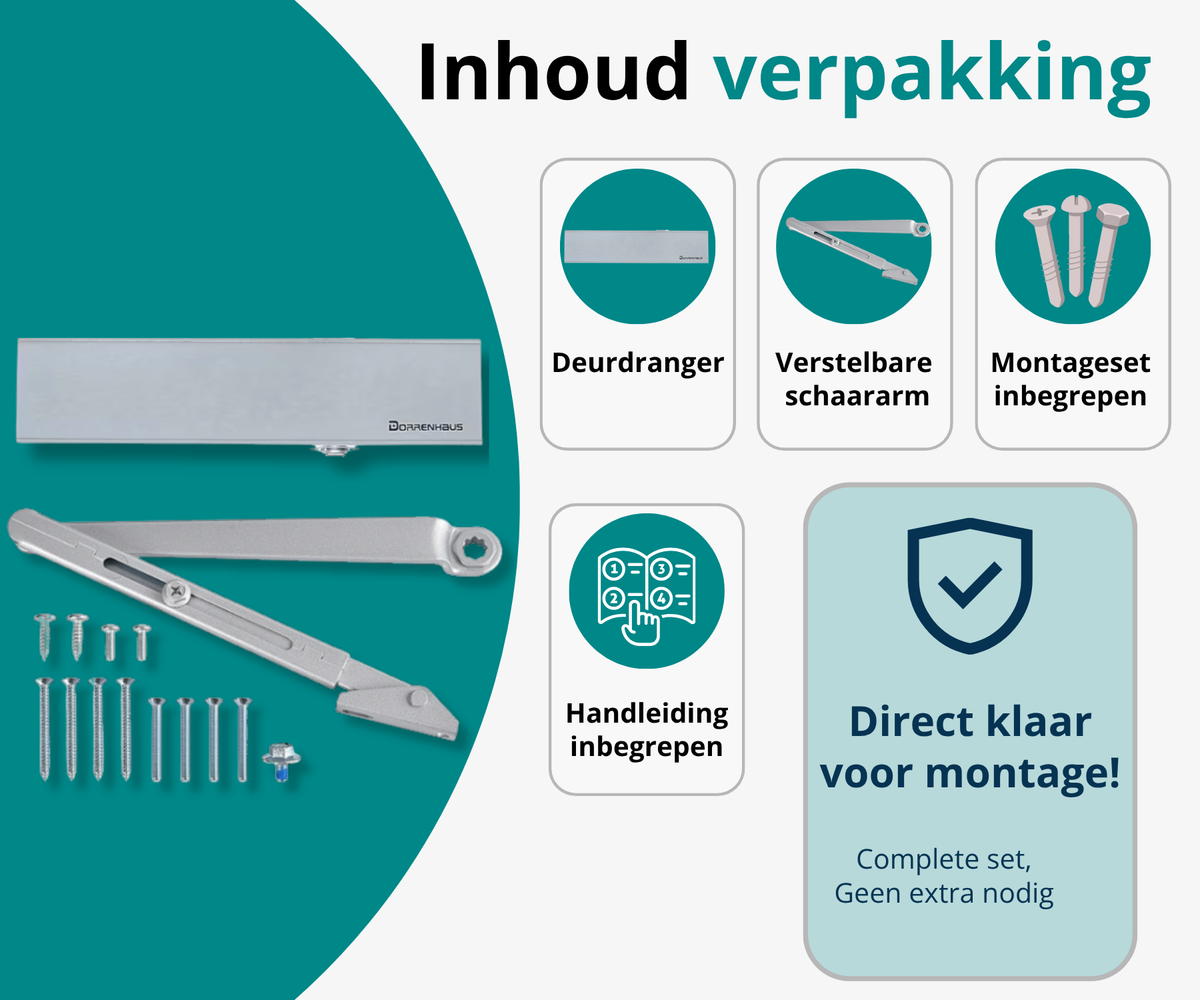

In the box

Door closer
Scissor arm
Screws and mounting material
Manual
Protective cap for the shaft
Front cover
Allen key

A selection of our reviews

VERIFIED VIA TRUSTPILOT

★★★★★ 4.7 based on 112 reviews
★ ★ ★ ★ ★
Verified

Protective cage smoke detector sports hall

We have installed 12 of them in the sports hall. No more damage from playing football and it still works perfectly with the test alarm.

Tessa
★ ★ ★ ★ ★
Verified

Compact door closer with sliding arm

Net model, hardly visible on the door. Installation was simple, although no drilling template was included. Closes smoothly.

Erik
★ ★ ★ ★ ★
Verified

Protective cover for thermostat in care facility

User-friendly solution. Visitors can no longer adjust the temperature, but it remains easy to read. We will order more.

Annemieke
★ ★ ★ ★ ★
Verified

Sleek cover, neatly finished

The thermostat cover looks nice in the hallway. Children can no longer reach it and the material feels sturdy. The assembly video was helpful.

Ruben
★ ★ ★ ★ ★
Verified

Heavy-duty door closer for exterior door

Our outside door always slammed shut. With this door closer, it closes smoothly, even in the wind. Adjusting the speed was child's play.

Meike
★ ★ ★ ★ ★
Verified

Protective cage for smoke detector

Sturdy metal cage. Protects against balls in the gym without blocking the alarm signal. Would have liked to see extra screws included in the box.

Joost
★ ★ ★ ★ ★
Verified

Thermostat cover with little key

Exactly what we needed at the office. Colleagues can no longer fiddle with the buttons, yet there is still good airflow all around. Installation with 4 wall anchors, done.

Sanne
★ ★ ★ ★ ★
Verified

Sturdy door closer, quickly installed

Installed on the warehouse door within 20 minutes. The closure is gentle and makes hardly any noise. Mounting plate fit perfectly, clear instructions.

Patrick
<

Door leaf installation

The door closer on the door, arm on the frame, you pull the door towards you when opening.

Assembly

This door closer is suitable for left- and right-opening doors.

Frame installation

Door closer on the frame, arm on the door, you push the door away from you when opening.

Push and Pull side

This door closer can be used for both the push side and the pull side

Technical specifications of this doorcloser

Specification Details Details
Version Articulated arm / scissor arm
Color Silver-colored
Closing force EN3, EN 4, EN 5, EN 6
Direction of rotation Left and right rotating
Brand Dorrenhaus
Variable initial and final speed Yes
Adjustable closing speeds Yes
Safety valve against damage yes
Door width Up to 1500 mm
Weight of your door 40-150 KG
Door leaf mounting On hinge side or pull side
Frame mounting On non-hinge side or push side
Application professional
Hold-open function no
Maximum adjustable opening angle no
Force adjustable after installation yes with supplied Allen key

Videos

See below available videos about this product.

Manuals

For more information about the installation, download the manual below.

D3000-normal-parallelmount-new installation-guide-D-3036

How do I adjust my doorcloser

-Tip: Open the door fully and tighten both adjustment screws of the doorcloser
-If done correctly, the door will stay open and will not close.
-Then slowly loosen the correct adjustment screw a little, so the door closes gently.
-Then slowly loosen the correct adjustment screw a little, so the door closes gently.
-If the door still does not close completely, slowly loosen the other adjustment screw to control the speed at which the door latches.
-This way, you can adjust the full closing speed to your preference.
