Product information

Pros and cons

This door closer is perfect for most residential and semi-professional applications due to its range of doors weighing 20-80 kg.

This door closer has a hydraulic final stop that accelerates the door just before the closed status.

The closing force of this door closer can be adjusted at the front.

This door closer has fewer adjustment options than its big brother, the TS 5000.

Description
The TS 3000 door closer from GEZE needs no introduction.
GEZE brand door closers meet the highest usage and quality requirements.
The TS 3000 is a small powerhouse that can be used in most situations, from semi-professional to professional.
Adjustable closing force EN1 - EN4 for doors of 20-80 kg. Naturally, this door closer complies with all fire and safety standards.

Setting options
The closing force is infinitely adjustable at the front.
This door closer has a hydraulic final action, which accelerates the door just before the closed status.
The closing delay can be fully adjusted to your preference at the front.

Assembly
This door closer is suitable for left and right-turning doors.

Door leaf mounting: door closer on the door, arm on the frame, you pull the door open towards you.

Frame mounting: door closer on the frame, arm on the door, you push the door away from you when opening it.

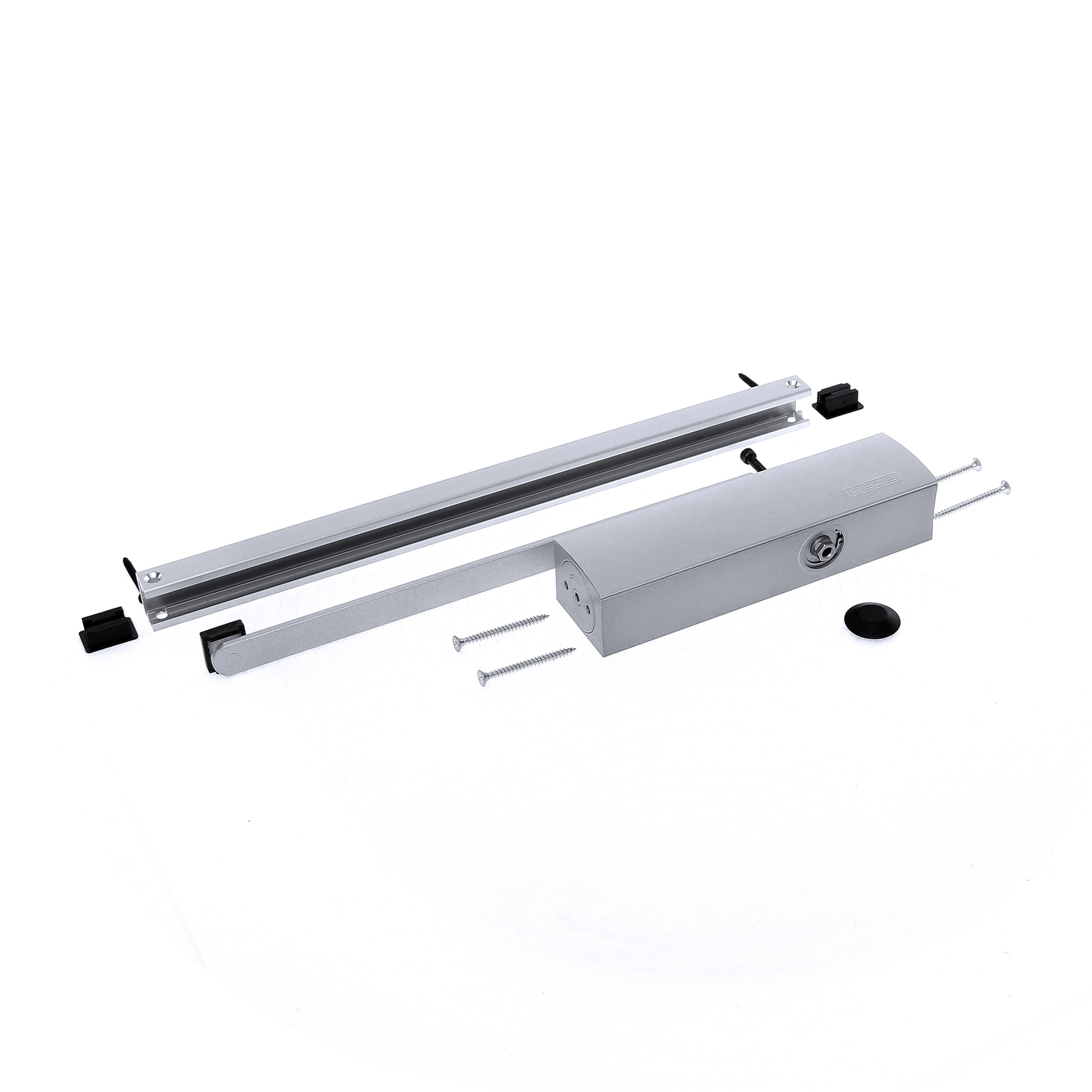

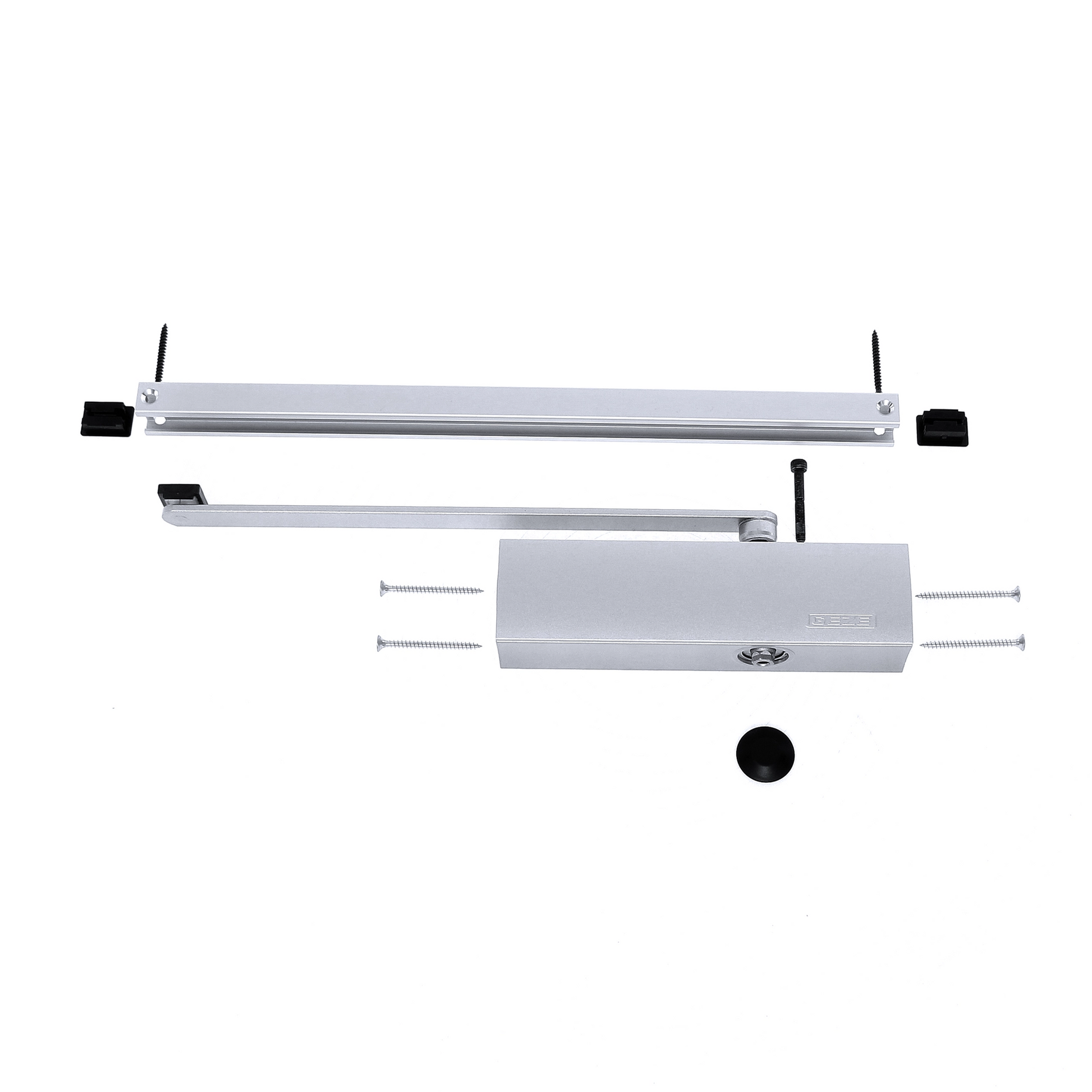

In the box
Door closer
Slide arm
Screws and mounting material
Manual
Protective cap for the axle
Front cover cap
Allen key

Setting advice
Tip: Open the door completely and close both adjusting screws of the door closer.
If you did it correctly, the door will now stay open and will not close again.
If you now slowly turn the correct screw a little, the door will slowly close.
This allows you to determine the closing speed.
If you did it right, the door should not close all the way now.
If you now slowly turn the other screw you can determine the speed at which the door closes.
This way you can adjust the entire closing speed to your own preference.
